TURA 1x12 LED

TURA 1x12 LEDTURA 1x12 LED
TURA 1x12 LEDTURA 1x12 LED

LL2036.751-EN

CEENECIK08IP66Class IClass II
Variants
Light distribution
[T4-S] 125x70°, [T3-S] 145x70°, [T2-S] 140x45°, [T2-M] 150x65°, [T1-VS] 150x65°, [P4] 85x50°
Nominal LED lumens flux
4045 - 4128 lm
Nominal LED power
24 W (700 mA)
Rated luminaire lumens flux
2886 - 3252 lm
Rated luminaire power
28 W
Colour temperature
3000 K CRI 70, 4000 K CRI 70
BUG rating
B1-U0-G1, B1-U0-G0, B2-U0-G1
Lifetime L90B50
>145, 000
Lifetime L80B50
>145, 000
Options
Control
On/Off, 1-10V, DALI, AstroDIM(3-Step), StepDIM
Input voltage
220-240V 50/60Hz, 120-277V 50/60Hz
Insulation class
Class I, Class II
Product colours
Black (Textured)Dark grey (Textured)Anthracite grey (Textured)Light grey (Textured)White (Textured)Bronze (Textured)Custom Colour (Please specify RAL code)
Extras
Connectivity
NEMA 7 Socket
Finishing options
Marine grade coating
Light output
Constant light output

Technical details



Mounting
Direct pole or side bracket mountable. Spigot: Ø60 mm x 100 mm
Tilt angle
-15°/+15°
Housing
Corrosion resistant aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
EPDM gasket (Shore A 20-25)
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP66
Wind catching area (EPA)
0.25 m²
Weight
10 kg
LED module
High power LEDs on metal-core PCB
Driver
Thermally-separated internal LED driver
Driver surge protection
8/6 kV
Power factor
> 0.95
Through wiring
Single cable entry
Operating temperature
-40...50°C

Downloads


Variants


Light distribution
Special pedestrian road distribution-right side traffic
[P4] Special pedestrian road distribution-right side traffic - 85x50°
Asymmetric, Side throw, Very short
[T1-VS] Asymmetric, Side throw, Very short - 150x65°
Asymmetric, Side throw, Medium
[T2-M] Asymmetric, Side throw, Medium - 150x65°
Asymmetric, Side throw, Short
[T2-S] Asymmetric, Side throw, Short - 140x45°
Asymmetric, Side throw, Short
[T3-S] Asymmetric, Side throw, Short - 145x70°
Asymmetric, Forward throw, Short
[T4-S] Asymmetric, Forward throw, Short - 125x70°
Nominal LED lumens flux
4045 lm
4128 lm
Nominal LED power
24 W
Colour temperature
3000 K CRI 70
4000 K CRI 70

Variant code

Variant name

Optic

Nominal LED lumens flux

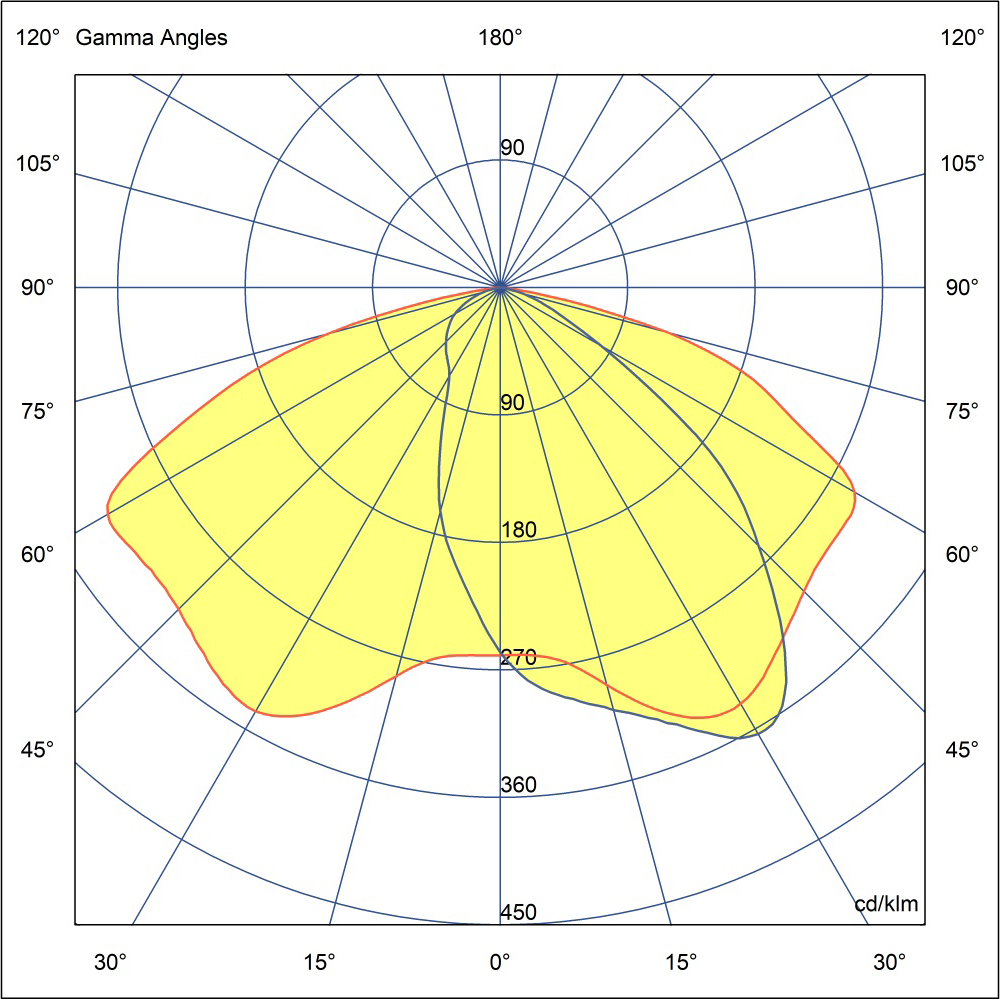

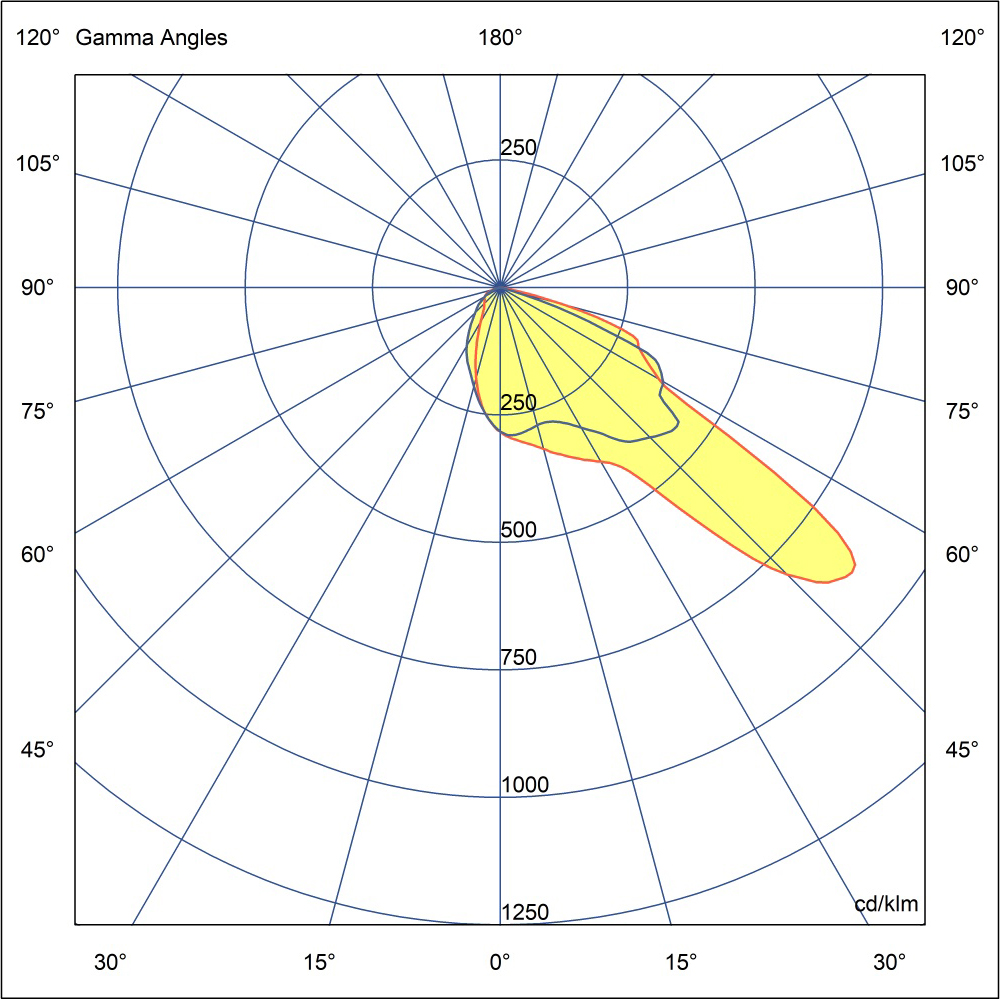

Variant code: LL2036.751-EN-P4-700-730
Variant name: LED 12 - 24W - 700mA - 3000K CRI 70
Optic: [P4] Special pedestrian road distribution-right side traffic - 85x50°
Nominal LED lumens flux: 4045 lm
LL2036.751-EN-P4-700-730
Nominal LED lumens flux
4045 lm
Nominal LED power
24 W
Rated luminaire lumens flux
3130 lm
Rated luminaire power
28 W
Luminaire efficacy
112 lm/W
Lamp
12 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.751-EN-P4-700-740
Variant name: LED 12 - 24W - 700mA - 4000K CRI 70
Optic: [P4] Special pedestrian road distribution-right side traffic - 85x50°
Nominal LED lumens flux: 4128 lm
LL2036.751-EN-P4-700-740
Nominal LED lumens flux
4128 lm
Nominal LED power
24 W
Rated luminaire lumens flux
3194 lm
Rated luminaire power
28 W
Luminaire efficacy
114 lm/W
Lamp
12 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.751-EN-T1-VS-700-730
Variant name: LED 12 - 24W - 700mA - 3000K CRI 70
Optic: [T1-VS] Asymmetric, Side throw, Very short - 150x65°
Nominal LED lumens flux: 4045 lm
LL2036.751-EN-T1-VS-700-730
Nominal LED lumens flux
4045 lm
Nominal LED power
24 W
Rated luminaire lumens flux
3187 lm
Rated luminaire power
28 W
Luminaire efficacy
114 lm/W
Lamp
12 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.751-EN-T1-VS-700-740
Variant name: LED 12 - 24W - 700mA - 4000K CRI 70
Optic: [T1-VS] Asymmetric, Side throw, Very short - 150x65°
Nominal LED lumens flux: 4128 lm
LL2036.751-EN-T1-VS-700-740
Nominal LED lumens flux
4128 lm
Nominal LED power
24 W
Rated luminaire lumens flux
3252 lm
Rated luminaire power
28 W
Luminaire efficacy
116 lm/W
Lamp
12 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G1
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.751-EN-T2-M-700-730
Variant name: LED 12 - 24W - 700mA - 3000K CRI 70
Optic: [T2-M] Asymmetric, Side throw, Medium - 150x65°
Nominal LED lumens flux: 4045 lm
LL2036.751-EN-T2-M-700-730
Nominal LED lumens flux
4045 lm
Nominal LED power
24 W
Rated luminaire lumens flux
3073 lm
Rated luminaire power
28 W
Luminaire efficacy
110 lm/W
Lamp
12 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.751-EN-T2-M-700-740
Variant name: LED 12 - 24W - 700mA - 4000K CRI 70
Optic: [T2-M] Asymmetric, Side throw, Medium - 150x65°
Nominal LED lumens flux: 4128 lm
LL2036.751-EN-T2-M-700-740
Nominal LED lumens flux
4128 lm
Nominal LED power
24 W
Rated luminaire lumens flux
3136 lm
Rated luminaire power
28 W
Luminaire efficacy
112 lm/W
Lamp
12 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.751-EN-T2-S-700-730
Variant name: LED 12 - 24W - 700mA - 3000K CRI 70
Optic: [T2-S] Asymmetric, Side throw, Short - 140x45°
Nominal LED lumens flux: 4045 lm
LL2036.751-EN-T2-S-700-730
Nominal LED lumens flux
4045 lm
Nominal LED power
24 W
Rated luminaire lumens flux
3003 lm
Rated luminaire power
28 W
Luminaire efficacy
107 lm/W
Lamp
12 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G0
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.751-EN-T2-S-700-740
Variant name: LED 12 - 24W - 700mA - 4000K CRI 70
Optic: [T2-S] Asymmetric, Side throw, Short - 140x45°
Nominal LED lumens flux: 4128 lm
LL2036.751-EN-T2-S-700-740
Nominal LED lumens flux
4128 lm
Nominal LED power
24 W
Rated luminaire lumens flux
3065 lm
Rated luminaire power
28 W
Luminaire efficacy
109 lm/W
Lamp
12 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000

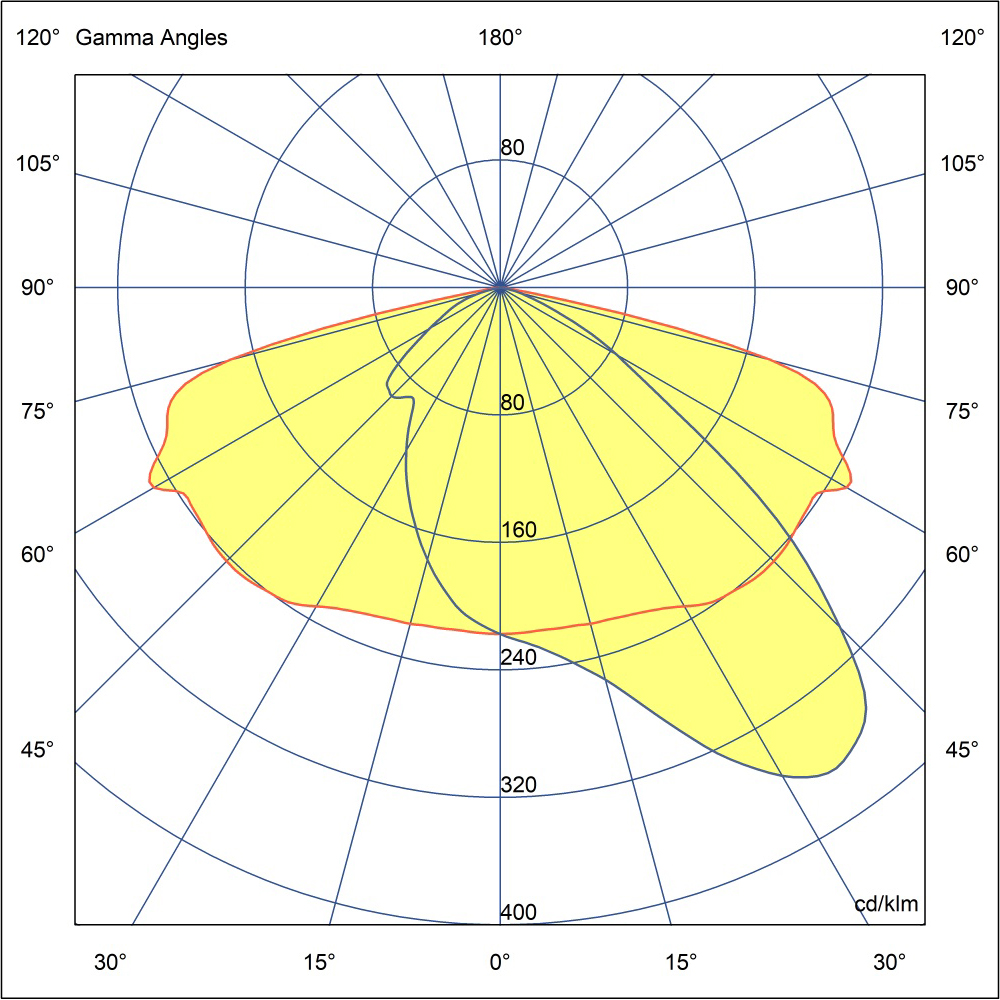

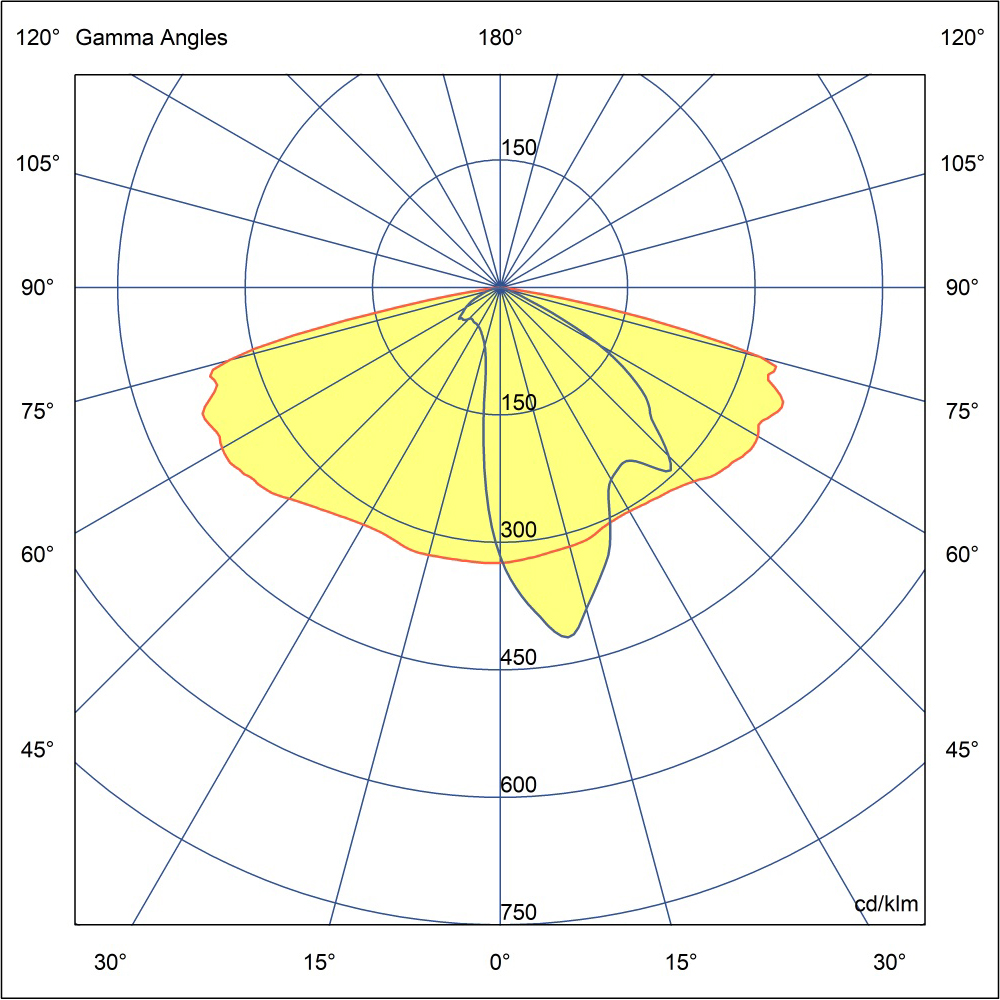

Variant code: LL2036.751-EN-T3-S-700-730
Variant name: LED 12 - 24W - 700mA - 3000K CRI 70
Optic: [T3-S] Asymmetric, Side throw, Short - 145x70°
Nominal LED lumens flux: 4045 lm
LL2036.751-EN-T3-S-700-730
Nominal LED lumens flux
4045 lm
Nominal LED power
24 W
Rated luminaire lumens flux
2886 lm
Rated luminaire power
28 W
Luminaire efficacy
103 lm/W
Lamp
12 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.751-EN-T3-S-700-740
Variant name: LED 12 - 24W - 700mA - 4000K CRI 70
Optic: [T3-S] Asymmetric, Side throw, Short - 145x70°
Nominal LED lumens flux: 4128 lm
LL2036.751-EN-T3-S-700-740
Nominal LED lumens flux
4128 lm
Nominal LED power
24 W
Rated luminaire lumens flux
2945 lm
Rated luminaire power
28 W
Luminaire efficacy
105 lm/W
Lamp
12 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.751-EN-T4-S-700-730
Variant name: LED 12 - 24W - 700mA - 3000K CRI 70
Optic: [T4-S] Asymmetric, Forward throw, Short - 125x70°
Nominal LED lumens flux: 4045 lm
LL2036.751-EN-T4-S-700-730
Nominal LED lumens flux
4045 lm
Nominal LED power
24 W
Rated luminaire lumens flux
2996 lm
Rated luminaire power
28 W
Luminaire efficacy
107 lm/W
Lamp
12 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000
Variant code: LL2036.751-EN-T4-S-700-740
Variant name: LED 12 - 24W - 700mA - 4000K CRI 70
Optic: [T4-S] Asymmetric, Forward throw, Short - 125x70°
Nominal LED lumens flux: 4128 lm
LL2036.751-EN-T4-S-700-740
Nominal LED lumens flux
4128 lm
Nominal LED power
24 W
Rated luminaire lumens flux
3058 lm
Rated luminaire power
28 W
Luminaire efficacy
109 lm/W
Lamp
12 LED
MacAdam Ellipse
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50
>145,000
Lifetime L80B50
>145,000

Poles (To be ordered separately)


Poles (To be ordered separately)


All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Special pedestrian road distribution-right side traffic
[P4]

Special pedestrian road distribution-right side traffic

Asymmetric, Side throw, Very short
[T1-VS]

Asymmetric, Side throw, Very short

Asymmetric, Side throw, Medium
[T2-M]

Asymmetric, Side throw, Medium

Asymmetric, Side throw, Short
[T2-S]

Asymmetric, Side throw, Short

Asymmetric, Side throw, Short
[T3-S]

Asymmetric, Side throw, Short

Asymmetric, Forward throw, Short
[T4-S]

Asymmetric, Forward throw, Short

Drive current


700 mA
[700]

700 mA

Colour temperature


3000 K CRI 70
[730]

3000 K CRI 70

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

1-10V
[1-10V]

1-10V

DALI
[DALI]

DALI

AstroDIM(3-Step)
[ASTRO]

AstroDIM(3-Step)

StepDIM
[STEP]

StepDIM

Input voltage


220-240V 50/60Hz
[EN]

220-240V 50/60Hz

120-277V 50/60Hz
[UNI]

120-277V 50/60Hz

Insulation class

Product colours


Class I
[C1]

Class I

Class II
[C2]

Class II

Product colours


Black (Textured)
[HM1]

Black (Textured)

Dark grey (Textured)
[HM2]

Dark grey (Textured)

Anthracite grey (Textured)
[HM3]

Anthracite grey (Textured)

Light grey (Textured)
[HM4]

Light grey (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom Colour (Please specify RAL code)
[CC]

Custom Colour (Please specify RAL code)

Extras

Connectivity

Finishing options


NEMA 7 Socket
[NM7]

NEMA 7 Socket

Finishing options


Marine grade coating
[MG]

Marine grade coating

Light output


Constant light output
[CLO]

Constant light output
