    RHINO AFX 1 Module

    NEW
    RHINO AFX 1 ModuleRHINO AFX 1 Module
    RHINO AFX 1 ModuleRHINO AFX 1 Module

    LL2028.861-EN

    CEIK08IP66Class I
    Variants
    Light distribution
    [P4] 85x50°, [T1-VS] 150x65°, [T2] 140x45°, [T2] 150x50°, [T2] 150x60°, [T2] 150x65°, [T2] 150x75°, [T3] 145x70°, [T4-S] 125x70°
    Nominal LED lumens flux
    5195 - 5526 lm
    Nominal LED power
    32 W (700 mA)
    Rated luminaire lumens flux
    3890 - 4510 lm
    Rated luminaire power
    35 W
    Colour temperature
    4000 K CRI 70, 3000 K CRI 70
    Lifetime L90B50 (hour)
    >100, 000
    Lifetime L80B50 (hour)
    >100, 000
    Options
    Control
    On/Off, 1-10V, AstroDIM(3-Step)
    Input voltage
    220-240V 50/60Hz, 120-277V 50/60Hz
    Insulation class
    Class I
    Product colours
    Black (Textured)Dark grey (Textured)Anthracite grey (Textured)Light grey (Textured)White (Textured)Bronze (Textured)Custom Colour (Please specify RAL code)
    Extras
    External surge protection
    10 kV
    Finishing options
    Marine grade coating
    Mounting options
    Side-mount bracket allowing +/-45° rotation

    Technical details


    Mounting
    Direct pole or side bracket mountable. Spigot: Ø60 mm x 100 mm
    Tilt angle
    +70°/-30°
    Housing
    Corrosion resistant, die-cast, marine grade aluminum housing
    Finishing
    Chromate conversion pretreatment followed by electrostatic powder coating
    Fasteners
    Stainless steel (grade 304)
    Gasket
    Liquid silicone
    Lens / Reflector
    PMMA lens with high optical efficiency
    Glass / Diffusor
    Tempered safety glass
    Impact protection
    IK08
    Ingress protection
    IP66
    Wind catching area (EPA)
    0,08 m²
    Weight
    6.73 kg
    LED module
    High power LEDs on metal-core PCB
    Driver
    Internal LED driver
    Driver surge protection
    6/6 kV
    Power factor
    > 0.95
    Through wiring
    Single cable entry
    Operating temperature
    -40...50°C
    Cable
    0.5 m of flexible cable

    Downloads

    Variants

    Light distribution
    Type II, Asymmetric, Side throw
    [T2] Type II, Asymmetric, Side throw - 140x45°
    Type II, Asymmetric, Side throw
    [T2] Type II, Asymmetric, Side throw - 150x50°
    Type II, Asymmetric, Side throw
    [T2] Type II, Asymmetric, Side throw - 150x60°
    Type II, Asymmetric, Side throw
    [T2] Type II, Asymmetric, Side throw - 150x65°
    Type II, Asymmetric, Side throw
    [T2] Type II, Asymmetric, Side throw - 150x75°
    Type III, Asymmetric, Side throw
    [T3] Type III, Asymmetric, Side throw - 145x70°
    Special pedestrian road distribution-right side traffic
    [P4] Special pedestrian road distribution-right side traffic - 85x50°
    Asymmetric, Side throw, Very short

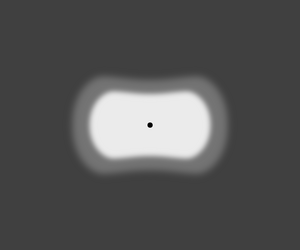

    [T1-VS] Asymmetric, Side throw, Very short - 150x65°
    Asymmetric, Forward throw, Short

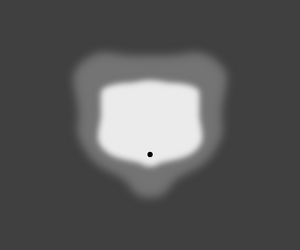

    [T4-S] Asymmetric, Forward throw, Short - 125x70°
    Nominal LED lumens flux
    5526 lm
    5195 lm
    Nominal LED power
    32 W
    Colour temperature
    4000 K CRI 70
    3000 K CRI 70

    Variant code

    Variant name

    Optic

    Nominal LED lumens flux



    Variant code: LL2028.861-EN-T2-700-730
    Variant name: AREAFLEX 16 - 32W - 700mA - 3000K CRI 70
    Optic: [T2] Type II, Asymmetric, Side throw - 140x45°
    Nominal LED lumens flux: 5195 lm
    LL2028.861-EN-T2-700-730
    Nominal LED lumens flux
    5195 lm
    Nominal LED power
    32 W
    Rated luminaire lumens flux
    4240 lm
    Rated luminaire power
    35 W
    Luminaire efficacy
    121.1428571 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    5 SDCM
    Lifetime L90B50 (hour)
    >100,000
    Lifetime L80B50 (hour)
    >100,000
    Variant code: LL2028.861-EN-T2-700-740
    Variant name: AREAFLEX 16 - 32W - 700mA - 4000K CRI 70
    Optic: [T2] Type II, Asymmetric, Side throw - 140x45°
    Nominal LED lumens flux: 5526 lm
    LL2028.861-EN-T2-700-740
    Nominal LED lumens flux
    5526 lm
    Nominal LED power
    32 W
    Rated luminaire lumens flux
    4510 lm
    Rated luminaire power
    35 W
    Luminaire efficacy
    129 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    5 SDCM
    Lifetime L90B50 (hour)
    >100,000
    Lifetime L80B50 (hour)
    >100,000
    Variant code: LL2028.861-EN-T2-3-700-730
    Variant name: AREAFLEX 16 - 32W - 700mA - 3000K CRI 70
    Optic: [T2] Type II, Asymmetric, Side throw - 150x50°
    Nominal LED lumens flux: 5195 lm
    LL2028.861-EN-T2-3-700-730
    Nominal LED lumens flux
    5195 lm
    Nominal LED power
    32 W
    Rated luminaire lumens flux
    4110 lm
    Rated luminaire power
    35 W
    Luminaire efficacy
    117.4285714 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    5 SDCM
    Lifetime L90B50 (hour)
    >100,000
    Lifetime L80B50 (hour)
    >100,000
    Variant code: LL2028.861-EN-T2-3-700-740
    Variant name: AREAFLEX 16 - 32W - 700mA - 4000K CRI 70
    Optic: [T2] Type II, Asymmetric, Side throw - 150x50°
    Nominal LED lumens flux: 5526 lm
    LL2028.861-EN-T2-3-700-740
    Nominal LED lumens flux
    5526 lm
    Nominal LED power
    32 W
    Rated luminaire lumens flux
    4370 lm
    Rated luminaire power
    35 W
    Luminaire efficacy
    125 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    5 SDCM
    Lifetime L90B50 (hour)
    >100,000
    Lifetime L80B50 (hour)
    >100,000
    Variant code: LL2028.861-EN-T2-5-700-730
    Variant name: AREAFLEX 16 - 32W - 700mA - 3000K CRI 70
    Optic: [T2] Type II, Asymmetric, Side throw - 150x60°
    Nominal LED lumens flux: 5195 lm
    LL2028.861-EN-T2-5-700-730
    Nominal LED lumens flux
    5195 lm
    Nominal LED power
    32 W
    Rated luminaire lumens flux
    4070 lm
    Rated luminaire power
    35 W
    Luminaire efficacy
    116.2857143 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    5 SDCM
    Lifetime L90B50 (hour)
    >100,000
    Lifetime L80B50 (hour)
    >100,000
    Variant code: LL2028.861-EN-T2-5-700-740
    Variant name: AREAFLEX 16 - 32W - 700mA - 4000K CRI 70
    Optic: [T2] Type II, Asymmetric, Side throw - 150x60°
    Nominal LED lumens flux: 5526 lm
    LL2028.861-EN-T2-5-700-740
    Nominal LED lumens flux
    5526 lm
    Nominal LED power
    32 W
    Rated luminaire lumens flux
    4330 lm
    Rated luminaire power
    35 W
    Luminaire efficacy
    124 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    5 SDCM
    Lifetime L90B50 (hour)
    >100,000
    Lifetime L80B50 (hour)
    >100,000
    Variant code: LL2028.861-EN-T2-2-700-730
    Variant name: AREAFLEX 16 - 32W - 700mA - 3000K CRI 70
    Optic: [T2] Type II, Asymmetric, Side throw - 150x65°
    Nominal LED lumens flux: 5195 lm
    LL2028.861-EN-T2-2-700-730
    Nominal LED lumens flux
    5195 lm
    Nominal LED power
    32 W
    Rated luminaire lumens flux
    3930 lm
    Rated luminaire power
    35 W
    Luminaire efficacy
    112.2857143 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    5 SDCM
    Lifetime L90B50 (hour)
    >100,000
    Lifetime L80B50 (hour)
    >100,000
    Variant code: LL2028.861-EN-T2-2-700-740
    Variant name: AREAFLEX 16 - 32W - 700mA - 4000K CRI 70
    Optic: [T2] Type II, Asymmetric, Side throw - 150x65°
    Nominal LED lumens flux: 5526 lm
    LL2028.861-EN-T2-2-700-740
    Nominal LED lumens flux
    5526 lm
    Nominal LED power
    32 W
    Rated luminaire lumens flux
    4180 lm
    Rated luminaire power
    35 W
    Luminaire efficacy
    119 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    5 SDCM
    Lifetime L90B50 (hour)
    >100,000
    Lifetime L80B50 (hour)
    >100,000
    Variant code: LL2028.861-EN-T2-4-700-730
    Variant name: AREAFLEX 16 - 32W - 700mA - 3000K CRI 70
    Optic: [T2] Type II, Asymmetric, Side throw - 150x75°
    Nominal LED lumens flux: 5195 lm
    LL2028.861-EN-T2-4-700-730
    Nominal LED lumens flux
    5195 lm
    Nominal LED power
    32 W
    Rated luminaire lumens flux
    3995 lm
    Rated luminaire power
    35 W
    Luminaire efficacy
    114.1428571 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    5 SDCM
    Lifetime L90B50 (hour)
    >100,000
    Lifetime L80B50 (hour)
    >100,000
    Variant code: LL2028.861-EN-T2-4-700-740
    Variant name: AREAFLEX 16 - 32W - 700mA - 4000K CRI 70
    Optic: [T2] Type II, Asymmetric, Side throw - 150x75°
    Nominal LED lumens flux: 5526 lm
    LL2028.861-EN-T2-4-700-740
    Nominal LED lumens flux
    5526 lm
    Nominal LED power
    32 W
    Rated luminaire lumens flux
    4250 lm
    Rated luminaire power
    35 W
    Luminaire efficacy
    121 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    5 SDCM
    Lifetime L90B50 (hour)
    >100,000
    Lifetime L80B50 (hour)
    >100,000
    Variant code: LL2028.861-EN-T3-700-730
    Variant name: AREAFLEX 16 - 32W - 700mA - 3000K CRI 70
    Optic: [T3] Type III, Asymmetric, Side throw - 145x70°
    Nominal LED lumens flux: 5195 lm
    Nominal LED lumens flux
    5195 lm
    Nominal LED power
    32 W
    Rated luminaire lumens flux
    3890 lm
    Rated luminaire power
    35 W
    Luminaire efficacy
    111.1428571 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    5 SDCM
    Lifetime L90B50 (hour)
    >100,000
    Lifetime L80B50 (hour)
    >100,000
    Variant code: LL2028.861-EN-T3-700-740
    Variant name: AREAFLEX 16 - 32W - 700mA - 4000K CRI 70
    Optic: [T3] Type III, Asymmetric, Side throw - 145x70°
    Nominal LED lumens flux: 5526 lm
    Nominal LED lumens flux
    5526 lm
    Nominal LED power
    32 W
    Rated luminaire lumens flux
    4140 lm
    Rated luminaire power
    35 W
    Luminaire efficacy
    118.2857143 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    5 SDCM
    Lifetime L90B50 (hour)
    >100,000
    Lifetime L80B50 (hour)
    >100,000
    Variant code: LL2028.861-EN-T4-S-700-730
    Variant name: AREAFLEX 16 - 32W - 700mA - 3000K CRI 70
    Optic: [T4-S] Asymmetric, Forward throw, Short - 125x70°
    Nominal LED lumens flux: 5195 lm
    LL2028.861-EN-T4-S-700-730
    Nominal LED lumens flux
    5195 lm
    Nominal LED power
    32 W
    Rated luminaire lumens flux
    4050 lm
    Rated luminaire power
    35 W
    Luminaire efficacy
    115.7142857 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    5 SDCM
    Lifetime L90B50 (hour)
    >100,000
    Lifetime L80B50 (hour)
    >100,000
    Variant code: LL2028.861-EN-T4-S-700-740
    Variant name: AREAFLEX 16 - 32W - 700mA - 4000K CRI 70
    Optic: [T4-S] Asymmetric, Forward throw, Short - 125x70°
    Nominal LED lumens flux: 5526 lm
    LL2028.861-EN-T4-S-700-740
    Nominal LED lumens flux
    5526 lm
    Nominal LED power
    32 W
    Rated luminaire lumens flux
    4310 lm
    Rated luminaire power
    35 W
    Luminaire efficacy
    123 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    5 SDCM
    Lifetime L90B50 (hour)
    >100,000
    Lifetime L80B50 (hour)
    >100,000
    Variant code: LL2028.861-EN-T1-VS-700-730
    Variant name: AREAFLEX 16 - 32W - 700mA - 3000K CRI 70
    Optic: [T1-VS] Asymmetric, Side throw, Very short - 150x65°
    Nominal LED lumens flux: 5195 lm
    LL2028.861-EN-T1-VS-700-730
    Nominal LED lumens flux
    5195 lm
    Nominal LED power
    32 W
    Rated luminaire lumens flux
    4180 lm
    Rated luminaire power
    35 W
    Luminaire efficacy
    119.4285714 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    5 SDCM
    Lifetime L90B50 (hour)
    >100,000
    Lifetime L80B50 (hour)
    >100,000
    Variant code: LL2028.861-EN-T1-VS-700-740
    Variant name: AREAFLEX 16 - 32W - 700mA - 4000K CRI 70
    Optic: [T1-VS] Asymmetric, Side throw, Very short - 150x65°
    Nominal LED lumens flux: 5526 lm
    LL2028.861-EN-T1-VS-700-740
    Nominal LED lumens flux
    5526 lm
    Nominal LED power
    32 W
    Rated luminaire lumens flux
    4450 lm
    Rated luminaire power
    35 W
    Luminaire efficacy
    127 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    5 SDCM
    Lifetime L90B50 (hour)
    >100,000
    Lifetime L80B50 (hour)
    >100,000
    Variant code: LL2028.861-EN-P4-700-730
    Variant name: AREAFLEX 16 - 32W - 700mA - 3000K CRI 70
    Optic: [P4] Special pedestrian road distribution-right side traffic - 85x50°
    Nominal LED lumens flux: 5195 lm
    LL2028.861-EN-P4-700-730
    Nominal LED lumens flux
    5195 lm
    Nominal LED power
    32 W
    Rated luminaire lumens flux
    4210 lm
    Rated luminaire power
    35 W
    Luminaire efficacy
    120.2857143 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    5 SDCM
    Lifetime L90B50 (hour)
    >100,000
    Lifetime L80B50 (hour)
    >100,000
    Variant code: LL2028.861-EN-P4-700-740
    Variant name: AREAFLEX 16 - 32W - 700mA - 4000K CRI 70
    Optic: [P4] Special pedestrian road distribution-right side traffic - 85x50°
    Nominal LED lumens flux: 5526 lm
    LL2028.861-EN-P4-700-740
    Nominal LED lumens flux
    5526 lm
    Nominal LED power
    32 W
    Rated luminaire lumens flux
    4480 lm
    Rated luminaire power
    35 W
    Luminaire efficacy
    128 lm/W
    Lamp
    16 LED
    MacAdam Ellipse
    5 SDCM
    Lifetime L90B50 (hour)
    >100,000
    Lifetime L80B50 (hour)
    >100,000

    Poles (To be ordered separately)

    Poles (To be ordered separately)

    All flux and power values derived following appropriate IES, CIE and applicable standards.
    Descriptions
    Variants

    Light distribution

    Drive current

    Type II, Asymmetric, Side throw
    [T2]

    Type II, Asymmetric, Side throw

    Type III, Asymmetric, Side throw
    [T3]

    Type III, Asymmetric, Side throw

    Special pedestrian road distribution-right side traffic
    [P4]

    Special pedestrian road distribution-right side traffic

    Asymmetric, Side throw, Very short
    [T1-VS]

    Asymmetric, Side throw, Very short

    Asymmetric, Forward throw, Short
    [T4-S]

    Asymmetric, Forward throw, Short

    Drive current

    700 mA
    [700]

    700 mA

    Colour temperature

    3000 K CRI 70
    [730]

    3000 K CRI 70

    4000 K CRI 70
    [740]

    4000 K CRI 70

    Options

    Control

    Input voltage

    On/Off
    [ONOFF]

    On/Off

    1-10V
    [1-10V]

    1-10V

    AstroDIM(3-Step)
    [ASTRO]

    AstroDIM(3-Step)

    Input voltage

    220-240V 50/60Hz
    [EN]

    220-240V 50/60Hz

    120-277V 50/60Hz
    [UNI]

    120-277V 50/60Hz

    Insulation class

    Product colours

    Class I
    [C1]

    Class I

    Product colours

    Black (Textured)
    [HM1]

    Black (Textured)

    Dark grey (Textured)
    [HM2]

    Dark grey (Textured)

    Anthracite grey (Textured)
    [HM3]

    Anthracite grey (Textured)

    Light grey (Textured)
    [HM4]

    Light grey (Textured)

    White (Textured)
    [HM5]

    White (Textured)

    Bronze (Textured)
    [HM6]

    Bronze (Textured)

    Custom Colour (Please specify RAL code)
    [CC]

    Custom Colour (Please specify RAL code)

    Extras

    External surge protection

    Finishing options

    10 kV
    [SP10]

    10 kV

    Finishing options

    Marine grade coating
    [MG]

    Marine grade coating

    Mounting options

    Side-mount bracket allowing +/-45° rotation
    [SMBA]

    Side-mount bracket allowing +/-45° rotation
