    D-LIGHT L ML 8 Module

    PHASED-OUT
    D-LIGHT L ML 8 ModuleD-LIGHT L ML 8 Module

    LL2024.678-EN

    CEENECUKCAIK08IP66Class I

    Downloads

    D-LIGHT L ML 8 ModuleD-LIGHT L ML 8 Module
    Light distribution
    [T2] 130x85°
    Luminaire luminous flux
    23566 - 28510 lm
    Rated input power
    274 W
    CCT
    3000K, 4000K
    CRI
    Ra70, Ra80
    Control
    On/Off, DALI, AutoDIM, StepDIM
    Product colours
    Anthracite greyLight greyCustom colour (Please specify RAL code)
    Extras
    External surge protection
    10 kV
    Connectivity
    NEMA socket - 7 Pin
    Light output
    Constant light output
    Consult the factory
    Class II, 120-277V 50/60Hz
    Luminaire body options
    Double powder coating

    Luminaire efficacy
    86 - 104 lm/W
    Colour deviation
    3 SDCM, 4 SDCM
    BUG rating
    B3-U0-G3
    Lifetime L90B50 (hour)
    >60, 000
    Housing
    Marine grade aluminum housing
    Driver
    Integral LED driver
    Input voltage
    220-240V 50/60Hz
    Notes
    This product can be supplied with Insulation class (Class II) upon request. Please contact factory.
    Configurator
    Project name
    Type
    Quantity
    Date
    Note
    Variant order code

    LL2024.678-EN-T2-700-___-___-EN-C1-___-___-___-___-___-___

    Variants required



    Variants
    Light distribution
    [T2]
    Type II, Asymmetric, Side throw
    130x85°

    Rated input power
    [700]
    274 W

    Colour temperature
    [730]
    3000 K CRI 70
    [830]
    3000 K CRI 80
    [740]
    4000 K CRI 70
    Options
    Control
    [ONOFF]
    On/Off
    [DALI]
    DALI
    [AUTO]
    AutoDIM
    [STEP]
    StepDIM

    Product colours
    [HM3]Anthracite grey
    Anthracite grey
    [HM4]Light grey
    Light grey
    [CC]Custom colour (Please specify RAL code)
    Custom colour (Please specify RAL code)
    Extras
    External surge protection
    [SP10]
    10 kV
    Connectivity
    [NM7]
    NEMA socket - 7 Pin
    Light output
    [CLO]
    Constant light output
    Consult the factory
    [C2]
    Class II
    [UNI]
    120-277V 50/60Hz
    Luminaire body options
    [DPC]
    Double powder coating


    Variants required

    Technical details


    Certificates
    CE, ENEC, UKCA
    Mounting
    Direct pole or side bracket mountable. Spigot: Ø60 mm x 100 mm

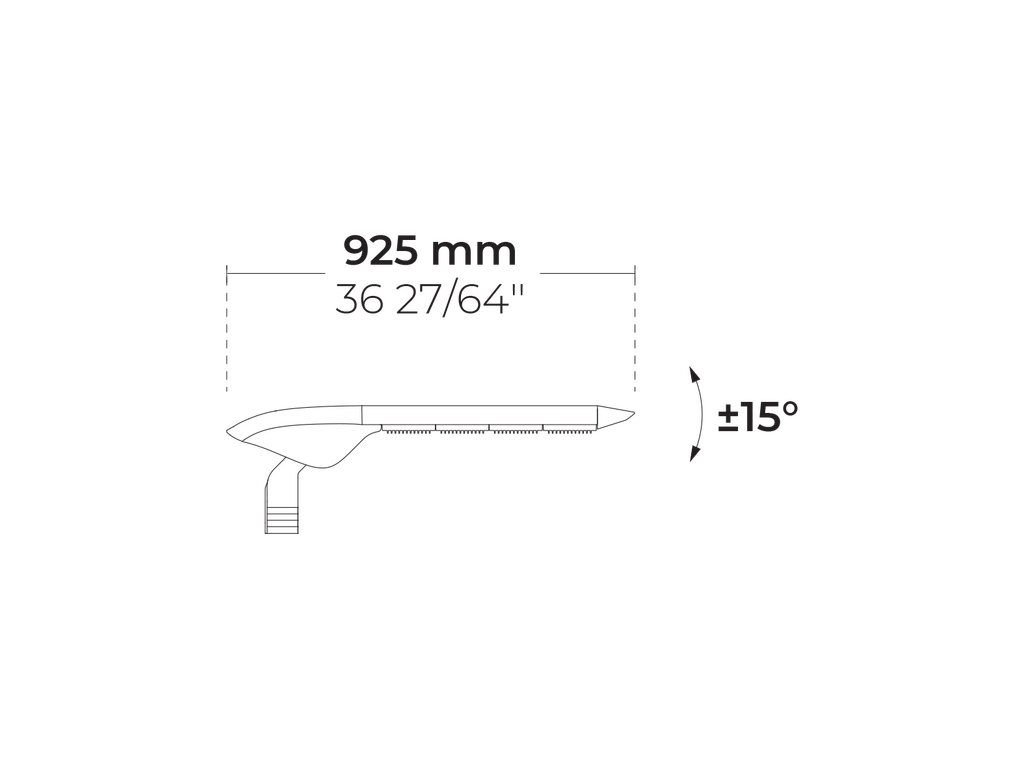

    Tilt angle
    +15°/-15°
    Finishing
    Chromate conversion pretreatment followed by electrostatic powder coating
    Fasteners
    Stainless steel (AISI 304 / EN 1.4301 grade)
    Gasket
    EPDM gasket (Shore A 20-25)
    Lens / Reflector
    High reflectance aluminium coating, multifaceted micro reflector
    Glass / Diffusor
    Bio-based, enriched with bisphenol A diffusor
    Impact protection
    IK08
    Ingress protection
    IP66
    Insulation class
    Class I
    Wind catching area (EPA)
    0.38 m²
    Weight
    13 kg
    LED module
    Multi-chip high power LEDs on metal-core PCB
    Driver surge protection
    8/6 kV
    Power factor
    > 0.99
    Through wiring
    Single cable entry
    Operating temperature
    -40...50°C
    Cable
    0.5 m of flexible cable
    Pole detail
    Poles are supplied with flange plate. Flange cover and anchorage can be ordered separately. Embedded base is optional

    Extras

    10 kV

    [SP10]

    10 kV

    External surge protection
    NEMA socket - 7 Pin

    [NM7]

    NEMA socket - 7 Pin

    Connectivity
    Constant light output

    [CLO]

    Constant light output

    Light output
    Class II

    [C2]

    Class II

    Consult the factory
    120-277V 50/60Hz

    [UNI]

    120-277V 50/60Hz

    Consult the factory
    Double powder coating

    [DPC]

    Double powder coating

    Luminaire body options

    Related products

    All flux and power values derived following appropriate IES, CIE and applicable standards.
    Descriptions
    Variants

    Light distribution

    Drive current

    Type II, Asymmetric, Side throw
    [T2]

    Type II, Asymmetric, Side throw

    Drive current

    700 mA
    [700]

    700 mA

    Colour temperature

    3000 K CRI 70
    [730]

    3000 K CRI 70

    3000 K CRI 80
    [830]

    3000 K CRI 80

    4000 K CRI 70
    [740]

    4000 K CRI 70

    Options

    Control

    Product colours

    On/Off
    [ONOFF]

    On/Off

    DALI
    [DALI]

    DALI

    AutoDIM
    [AUTO]

    AutoDIM

    StepDIM
    [STEP]

    StepDIM

    Product colours

    Anthracite grey
    [HM3]

    Anthracite grey

    Light grey
    [HM4]

    Light grey

    Custom colour (Please specify RAL code)
    [CC]

    Custom colour (Please specify RAL code)
