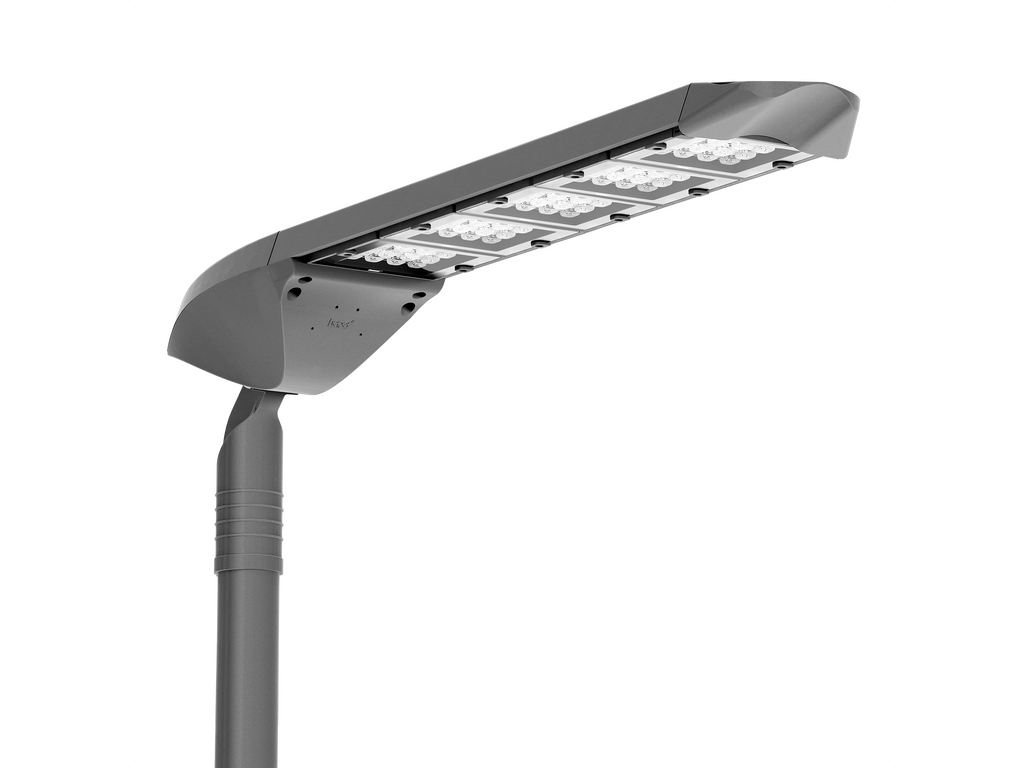

    D-LIGHT AFX 5 Module

    NEW
    D-LIGHT AFX 5 ModuleD-LIGHT AFX 5 Module
    D-LIGHT AFX 5 ModuleD-LIGHT AFX 5 Module

    LL2023.865-EN

    CEENECUKCAIK08IP66Class I
    Variants
    Light distribution
    [P4] 20x78°, [T1] 111x48°, [T2] 133x48°, [T2] 149x54°, [T3] 143x63°, [T4] 117x64°, [T4] 117x65°, [T5] 117°
    Delivered lumens flux
    7460 - 22270 lm
    Rated input power
    81 - 172 W
    Colour temperature
    2200 K CRI 80, 3000 K CRI 70, 3000 K CRI 80, 4000 K CRI 70
    BUG rating
    B3-U1-G2, B3-U1-G3, B2-U1-G2, B2-U1-G1, B3-U1-G1, B4-U1-G2, B1-U1-G2, B1-U1-G1, B4-U1-G1, B2-U0-G1, B2-U0-G2, B3-U0-G2, B3-U0-G1, B4-U0-G2, B1-U0-G1, B1-U0-G2
    Lifetime L90B10 (hour)
    >102, 000
    Lifetime L90B50 (hour)
    >102, 000
    Options
    Control
    On/Off, DALI, AutoDIM, StepDIM
    Product colours
    Anthracite greyLight greyCustom colour (Please specify RAL code)
    Extras
    External surge protection
    10 kV
    Connectivity
    NEMA socket - 7 Pin
    Light output
    Constant light output
    Consult the factory
    Class II, 120-277V 50/60Hz
    Luminaire body options
    Double powder coating

    Technical details


    Certificates
    CE, ENEC, UKCA
    Mounting
    Direct pole or side bracket mountable. Spigot: Ø60 mm x 100 mm
    Tilt angle
    +15°/-15°
    Housing
    Corrosion resistant, die-cast, marine grade aluminum housing
    Finishing
    Chromate conversion pretreatment followed by electrostatic powder coating
    Fasteners
    Stainless steel (AISI 304 / EN 1.4301 grade)
    Gasket
    EPDM gasket (Shore A 20-25)
    Lens / Reflector
    PMMA lens with high optical efficiency
    Glass / Diffusor
    Tempered safety glass
    Impact protection
    IK08
    Ingress protection
    IP66
    Input voltage
    220-240V 50/60Hz
    Insulation class
    Class I
    Wind catching area (EPA)
    0.11 m²
    Weight
    8.97 kg
    LED module
    High power LEDs on metal-core PCB
    Driver
    Integral LED driver
    Driver surge protection
    10/6 kV
    Power factor
    > 0.98
    Through wiring
    Single cable entry
    Operating temperature
    -40...50°C
    Cable
    0.5 m of flexible cable
    Packing box dimensions
    122*20*16 cm
    Pole detail
    Poles are supplied with flange plate. Flange cover and anchorage can be ordered separately. Embedded base is optional
    Notes
    This product can be supplied with Insulation class (Class II) upon request. Please contact factory.

    Downloads

    Variants

    Light distribution
    Type I, Asymmetric, Side throw
    [T1] Type I, Asymmetric, Side throw - 111x48°

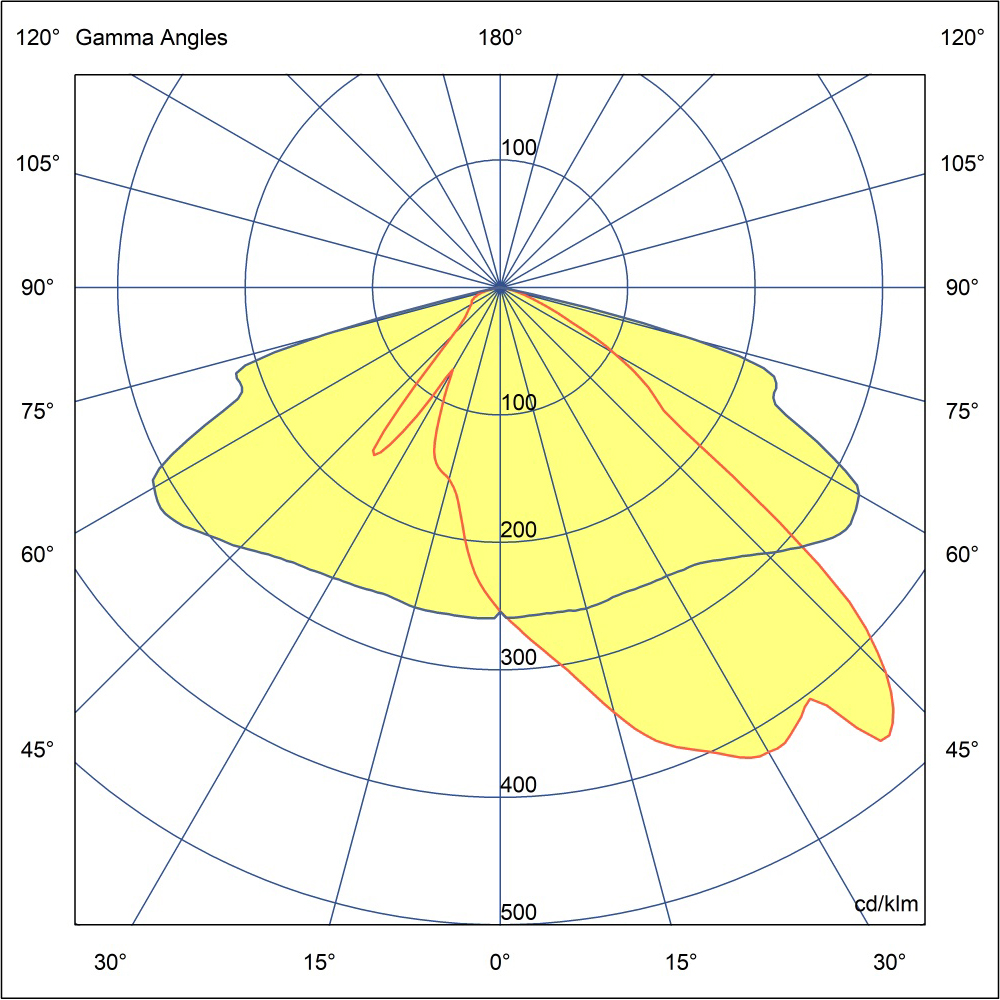

    Type II, Asymmetric, Side throw
    [T2] Type II, Asymmetric, Side throw - 133x48°
    Type II, Asymmetric, Side throw
    [T2] Type II, Asymmetric, Side throw - 149x54°

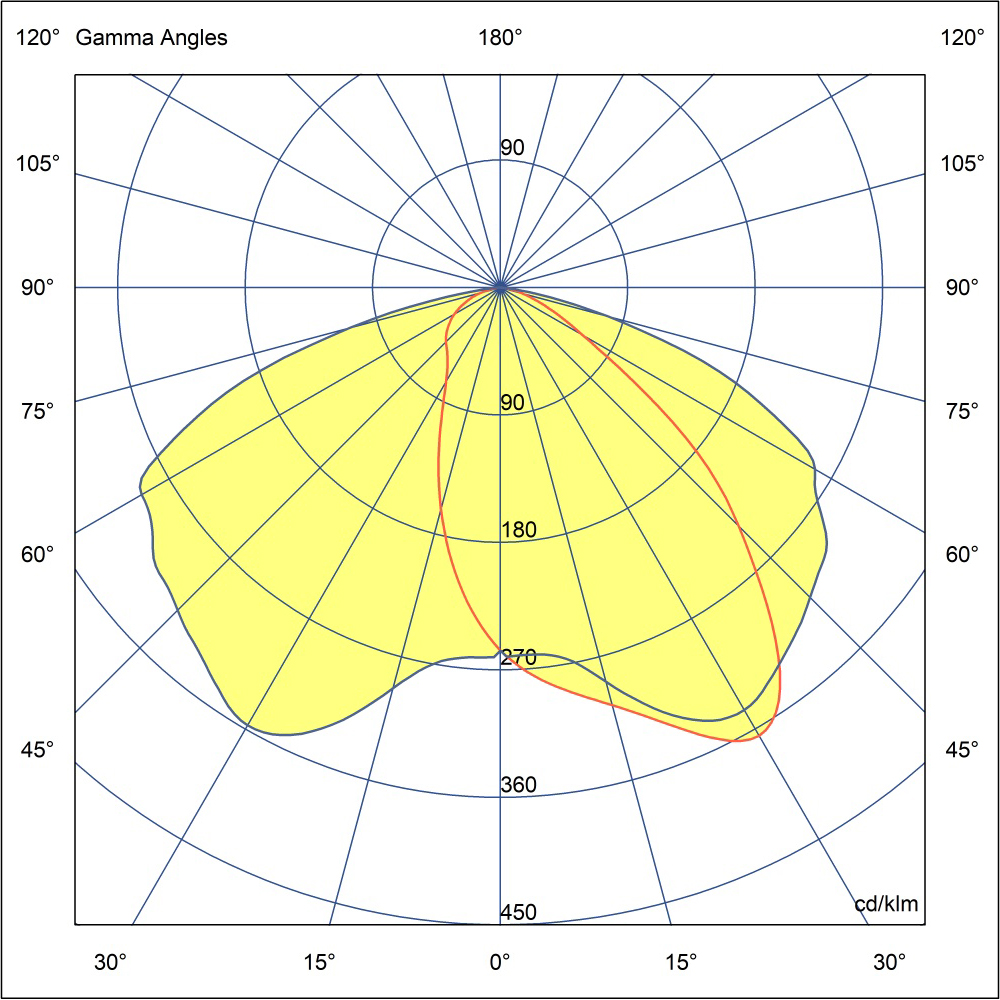

    Type III, Asymmetric, Side throw
    [T3] Type III, Asymmetric, Side throw - 143x63°

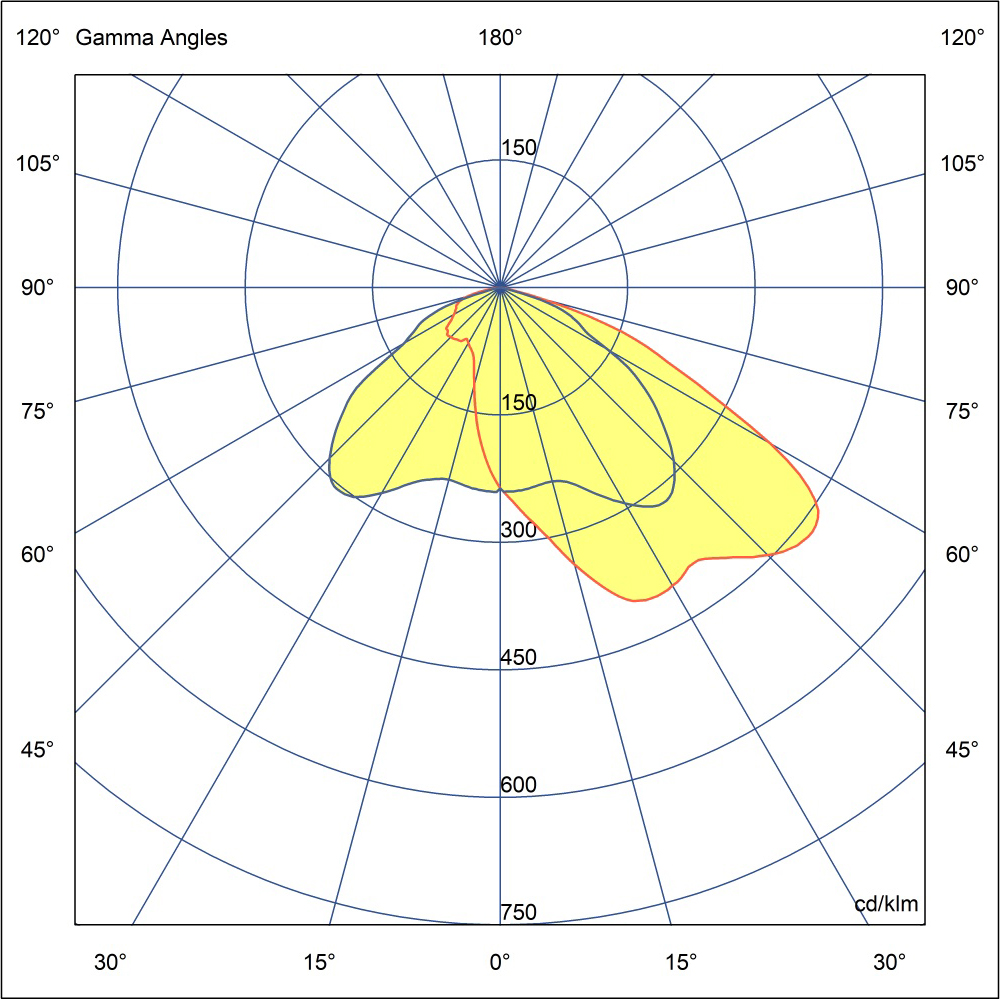

    Type IV, Asymmetric, Forward throw
    [T4] Type IV, Asymmetric, Forward throw - 117x64°
    Type IV, Asymmetric, Forward throw
    [T4] Type IV, Asymmetric, Forward throw - 117x65°

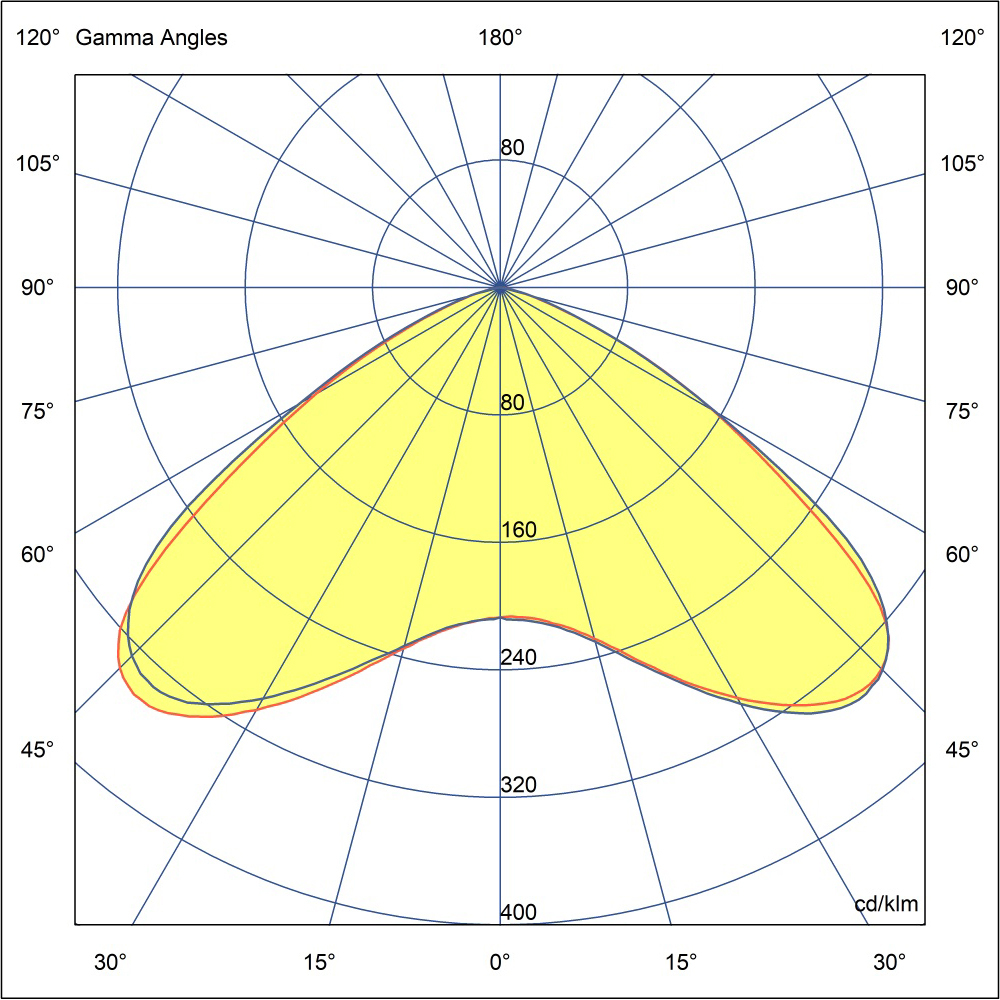

    Type V, Symmetric
    [T5] Type V, Symmetric - 117°
    Special pedestrian road distribution-right side traffic
    [P4] Special pedestrian road distribution-right side traffic - 20x78°
    Delivered lumens flux
    7460 lm
    7805 lm
    8095 lm
    8160 lm
    8165 lm
    8215 lm
    8355 lm
    9080 lm
    9730 lm
    9820 lm
    9830 lm
    9845 lm
    9975 lm
    10130 lm
    10155 lm
    10365 lm
    10410 lm
    10525 lm
    10535 lm
    10550 lm
    10690 lm
    10860 lm
    10880 lm
    10895 lm
    11210 lm
    11220 lm
    11235 lm
    11385 lm
    11390 lm
    11395 lm
    11465 lm
    11480 lm
    11565 lm
    11590 lm
    11660 lm
    12970 lm
    13425 lm
    14025 lm
    14040 lm
    14050 lm
    14060 lm
    14250 lm
    14360 lm
    14470 lm
    14505 lm
    14690 lm
    14700 lm
    14785 lm
    14845 lm
    15040 lm
    15195 lm
    15530 lm
    15550 lm
    15570 lm
    15780 lm
    16025 lm
    16060 lm
    16430 lm
    16450 lm
    16470 lm
    16695 lm
    16785 lm
    16955 lm
    16990 lm
    18150 lm
    18175 lm
    18200 lm
    18440 lm
    18520 lm
    18730 lm
    18770 lm
    19915 lm
    20030 lm
    20050 lm
    20080 lm
    20350 lm
    20670 lm
    20715 lm
    21535 lm
    21555 lm
    21585 lm
    21875 lm
    22215 lm
    22270 lm
    Rated input power
    81 W
    120 W
    172 W
    Colour temperature
    2200 K CRI 80
    3000 K CRI 70
    3000 K CRI 80
    4000 K CRI 70

    Variant code

    Light distribution

    Delivered lumens flux

    Rated input power

    Colour temperature

    Control

    Variant code: LL2023.865-EN-T1-350-730
    Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
    Delivered lumens flux: 10535 lm
    Rated input power: 81 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T1-350-730
    Light distribution
    [T1] 111x48°
    Delivered lumens flux
    10535 lm
    Rated input power
    81 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    130 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U1-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T1-350-740
    Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
    Delivered lumens flux: 11220 lm
    Rated input power: 81 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T1-350-740
    Light distribution
    [T1] 111x48°
    Delivered lumens flux
    11220 lm
    Rated input power
    81 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    139 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B3-U1-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T1-350-822
    Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
    Delivered lumens flux: 8355 lm
    Rated input power: 81 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [T1] 111x48°
    Delivered lumens flux
    8355 lm
    Rated input power
    81 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    103 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U0-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T1-350-830
    Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
    Delivered lumens flux: 9830 lm
    Rated input power: 81 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T1-350-830
    Light distribution
    [T1] 111x48°
    Delivered lumens flux
    9830 lm
    Rated input power
    81 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    121 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U1-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T1-500-730
    Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
    Delivered lumens flux: 15550 lm
    Rated input power: 120 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T1-500-730
    Light distribution
    [T1] 111x48°
    Delivered lumens flux
    15550 lm
    Rated input power
    120 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    130 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B4-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T1-500-740
    Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
    Delivered lumens flux: 16450 lm
    Rated input power: 120 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T1-500-740
    Light distribution
    [T1] 111x48°
    Delivered lumens flux
    16450 lm
    Rated input power
    120 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    137 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B4-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T1-500-822
    Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
    Delivered lumens flux: 11660 lm
    Rated input power: 120 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [T1] 111x48°
    Delivered lumens flux
    11660 lm
    Rated input power
    120 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    99 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U0-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T1-500-830
    Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
    Delivered lumens flux: 14040 lm
    Rated input power: 120 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T1-500-830
    Light distribution
    [T1] 111x48°
    Delivered lumens flux
    14040 lm
    Rated input power
    120 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    117 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T1-700-730
    Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
    Delivered lumens flux: 20050 lm
    Rated input power: 172 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T1-700-730
    Light distribution
    [T1] 111x48°
    Delivered lumens flux
    20050 lm
    Rated input power
    172 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    117 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B4-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T1-700-740
    Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
    Delivered lumens flux: 21555 lm
    Rated input power: 172 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T1-700-740
    Light distribution
    [T1] 111x48°
    Delivered lumens flux
    21555 lm
    Rated input power
    172 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    125 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B4-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T1-700-822
    Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
    Delivered lumens flux: 15040 lm
    Rated input power: 172 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [T1] 111x48°
    Delivered lumens flux
    15040 lm
    Rated input power
    172 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    89 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B4-U0-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T1-700-830
    Light distribution: [T1] Type I, Asymmetric, Side throw - 111x48°
    Delivered lumens flux: 18175 lm
    Rated input power: 172 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T1-700-830
    Light distribution
    [T1] 111x48°
    Delivered lumens flux
    18175 lm
    Rated input power
    172 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    106 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B4-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-350-730
    Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
    Delivered lumens flux: 10880 lm
    Rated input power: 81 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T2-350-730
    Light distribution
    [T2] 133x48°
    Delivered lumens flux
    10880 lm
    Rated input power
    81 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    134 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B1-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-350-740
    Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
    Delivered lumens flux: 11590 lm
    Rated input power: 81 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T2-350-740
    Light distribution
    [T2] 133x48°
    Delivered lumens flux
    11590 lm
    Rated input power
    81 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    143 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B1-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-350-822
    Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
    Delivered lumens flux: 8165 lm
    Rated input power: 81 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [T2] 133x48°
    Delivered lumens flux
    8165 lm
    Rated input power
    81 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    107 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B1-U0-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-350-830
    Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
    Delivered lumens flux: 10155 lm
    Rated input power: 81 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T2-350-830
    Light distribution
    [T2] 133x48°
    Delivered lumens flux
    10155 lm
    Rated input power
    81 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    125 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B1-U1-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-500-730
    Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
    Delivered lumens flux: 16060 lm
    Rated input power: 120 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T2-500-730
    Light distribution
    [T2] 133x48°
    Delivered lumens flux
    16060 lm
    Rated input power
    120 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    134 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-500-740
    Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
    Delivered lumens flux: 16990 lm
    Rated input power: 120 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T2-500-740
    Light distribution
    [T2] 133x48°
    Delivered lumens flux
    16990 lm
    Rated input power
    120 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    142 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-500-822
    Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
    Delivered lumens flux: 11395 lm
    Rated input power: 120 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [T2] 133x48°
    Delivered lumens flux
    11395 lm
    Rated input power
    120 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    103 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B1-U0-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-500-830
    Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
    Delivered lumens flux: 14505 lm
    Rated input power: 120 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T2-500-830
    Light distribution
    [T2] 133x48°
    Delivered lumens flux
    14505 lm
    Rated input power
    120 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    121 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-700-730
    Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
    Delivered lumens flux: 20715 lm
    Rated input power: 172 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T2-700-730
    Light distribution
    [T2] 133x48°
    Delivered lumens flux
    20715 lm
    Rated input power
    172 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    119 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-700-740
    Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
    Delivered lumens flux: 22270 lm
    Rated input power: 172 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T2-700-740
    Light distribution
    [T2] 133x48°
    Delivered lumens flux
    22270 lm
    Rated input power
    172 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    128 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-700-822
    Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
    Delivered lumens flux: 14700 lm
    Rated input power: 172 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [T2] 133x48°
    Delivered lumens flux
    14700 lm
    Rated input power
    172 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    93 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U0-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-700-830
    Light distribution: [T2] Type II, Asymmetric, Side throw - 133x48°
    Delivered lumens flux: 18770 lm
    Rated input power: 172 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T2-700-830
    Light distribution
    [T2] 133x48°
    Delivered lumens flux
    18770 lm
    Rated input power
    172 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    108 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-2-350-730
    Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
    Delivered lumens flux: 10550 lm
    Rated input power: 81 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T2-2-350-730
    Light distribution
    [T2] 149x54°
    Delivered lumens flux
    10550 lm
    Rated input power
    81 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    130 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-2-350-740
    Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
    Delivered lumens flux: 11235 lm
    Rated input power: 81 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T2-2-350-740
    Light distribution
    [T2] 149x54°
    Delivered lumens flux
    11235 lm
    Rated input power
    81 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    139 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-2-350-822
    Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
    Delivered lumens flux: 8160 lm
    Rated input power: 81 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [T2] 149x54°
    Delivered lumens flux
    8160 lm
    Rated input power
    81 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    103 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U0-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-2-350-830
    Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
    Delivered lumens flux: 9845 lm
    Rated input power: 81 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T2-2-350-830
    Light distribution
    [T2] 149x54°
    Delivered lumens flux
    9845 lm
    Rated input power
    81 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    122 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-2-500-730
    Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
    Delivered lumens flux: 15570 lm
    Rated input power: 120 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T2-2-500-730
    Light distribution
    [T2] 149x54°
    Delivered lumens flux
    15570 lm
    Rated input power
    120 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    130 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-2-500-740
    Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
    Delivered lumens flux: 16470 lm
    Rated input power: 120 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T2-2-500-740
    Light distribution
    [T2] 149x54°
    Delivered lumens flux
    16470 lm
    Rated input power
    120 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    137 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B3-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-2-500-822
    Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
    Delivered lumens flux: 11390 lm
    Rated input power: 120 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [T2] 149x54°
    Delivered lumens flux
    11390 lm
    Rated input power
    120 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    99 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U0-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-2-500-830
    Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
    Delivered lumens flux: 14060 lm
    Rated input power: 120 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T2-2-500-830
    Light distribution
    [T2] 149x54°
    Delivered lumens flux
    14060 lm
    Rated input power
    120 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    117 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-2-700-730
    Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
    Delivered lumens flux: 20080 lm
    Rated input power: 172 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T2-2-700-730
    Light distribution
    [T2] 149x54°
    Delivered lumens flux
    20080 lm
    Rated input power
    172 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    116 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-2-700-740
    Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
    Delivered lumens flux: 21585 lm
    Rated input power: 172 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T2-2-700-740
    Light distribution
    [T2] 149x54°
    Delivered lumens flux
    21585 lm
    Rated input power
    172 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    124.5 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B3-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-2-700-822
    Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
    Delivered lumens flux: 14690 lm
    Rated input power: 172 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [T2] 149x54°
    Delivered lumens flux
    14690 lm
    Rated input power
    172 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    89 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U0-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T2-2-700-830
    Light distribution: [T2] Type II, Asymmetric, Side throw - 149x54°
    Delivered lumens flux: 18200 lm
    Rated input power: 172 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T2-2-700-830
    Light distribution
    [T2] 149x54°
    Delivered lumens flux
    18200 lm
    Rated input power
    172 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    105 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T3-350-730
    Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
    Delivered lumens flux: 9730 lm
    Rated input power: 81 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T3-350-730
    Light distribution
    [T3] 143x63°
    Delivered lumens flux
    9730 lm
    Rated input power
    81 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    120 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T3-350-740
    Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
    Delivered lumens flux: 10365 lm
    Rated input power: 81 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T3-350-740
    Light distribution
    [T3] 143x63°
    Delivered lumens flux
    10365 lm
    Rated input power
    81 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    128 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T3-350-822
    Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
    Delivered lumens flux: 7460 lm
    Rated input power: 81 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [T3] 143x63°
    Delivered lumens flux
    7460 lm
    Rated input power
    81 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    95 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U0-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T3-350-830
    Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
    Delivered lumens flux: 9080 lm
    Rated input power: 81 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T3-350-830
    Light distribution
    [T3] 143x63°
    Delivered lumens flux
    9080 lm
    Rated input power
    81 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    112 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U1-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T3-500-730
    Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
    Delivered lumens flux: 14360 lm
    Rated input power: 120 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T3-500-730
    Light distribution
    [T3] 143x63°
    Delivered lumens flux
    14360 lm
    Rated input power
    120 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    120 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T3-500-740
    Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
    Delivered lumens flux: 15195 lm
    Rated input power: 120 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T3-500-740
    Light distribution
    [T3] 143x63°
    Delivered lumens flux
    15195 lm
    Rated input power
    120 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    127 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B3-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T3-500-822
    Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
    Delivered lumens flux: 10410 lm
    Rated input power: 120 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [T3] 143x63°
    Delivered lumens flux
    10410 lm
    Rated input power
    120 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    91 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U0-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T3-500-830
    Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
    Delivered lumens flux: 12970 lm
    Rated input power: 120 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T3-500-830
    Light distribution
    [T3] 143x63°
    Delivered lumens flux
    12970 lm
    Rated input power
    120 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    108 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T3-700-730
    Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
    Delivered lumens flux: 18520 lm
    Rated input power: 172 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T3-700-730
    Light distribution
    [T3] 143x63°
    Delivered lumens flux
    18520 lm
    Rated input power
    172 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    107 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T3-700-740
    Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
    Delivered lumens flux: 19915 lm
    Rated input power: 172 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T3-700-740
    Light distribution
    [T3] 143x63°
    Delivered lumens flux
    19915 lm
    Rated input power
    172 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    115 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B3-U1-G3
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T3-700-822
    Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
    Delivered lumens flux: 13425 lm
    Rated input power: 172 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [T3] 143x63°
    Delivered lumens flux
    13425 lm
    Rated input power
    172 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    83 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U0-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T3-700-830
    Light distribution: [T3] Type III, Asymmetric, Side throw - 143x63°
    Delivered lumens flux: 16785 lm
    Rated input power: 172 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T3-700-830
    Light distribution
    [T3] 143x63°
    Delivered lumens flux
    16785 lm
    Rated input power
    172 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    97 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T4-350-730
    Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
    Delivered lumens flux: 10525 lm
    Rated input power: 81 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T4-350-730
    Light distribution
    [T4] 117x64°
    Delivered lumens flux
    10525 lm
    Rated input power
    81 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    130 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T4-350-740
    Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
    Delivered lumens flux: 11210 lm
    Rated input power: 81 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T4-350-740
    Light distribution
    [T4] 117x64°
    Delivered lumens flux
    11210 lm
    Rated input power
    81 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    138 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T4-350-822
    Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
    Delivered lumens flux: 7805 lm
    Rated input power: 81 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [T4] 117x64°
    Delivered lumens flux
    7805 lm
    Rated input power
    81 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    103 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B1-U0-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T4-350-830
    Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
    Delivered lumens flux: 9820 lm
    Rated input power: 81 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T4-350-830
    Light distribution
    [T4] 117x64°
    Delivered lumens flux
    9820 lm
    Rated input power
    81 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    121 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T4-500-730
    Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
    Delivered lumens flux: 15530 lm
    Rated input power: 120 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T4-500-730
    Light distribution
    [T4] 117x64°
    Delivered lumens flux
    15530 lm
    Rated input power
    120 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    129 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T4-500-740
    Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
    Delivered lumens flux: 16430 lm
    Rated input power: 120 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T4-500-740
    Light distribution
    [T4] 117x64°
    Delivered lumens flux
    16430 lm
    Rated input power
    120 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    137 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T4-500-822
    Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
    Delivered lumens flux: 10895 lm
    Rated input power: 120 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [T4] 117x64°
    Delivered lumens flux
    10895 lm
    Rated input power
    120 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    99 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U0-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T4-500-830
    Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
    Delivered lumens flux: 14025 lm
    Rated input power: 120 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T4-500-830
    Light distribution
    [T4] 117x64°
    Delivered lumens flux
    14025 lm
    Rated input power
    120 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    117 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T4-700-730
    Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
    Delivered lumens flux: 20030 lm
    Rated input power: 172 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T4-700-730
    Light distribution
    [T4] 117x64°
    Delivered lumens flux
    20030 lm
    Rated input power
    172 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    115 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T4-700-822
    Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
    Delivered lumens flux: 14050 lm
    Rated input power: 172 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [T4] 117x64°
    Delivered lumens flux
    14050 lm
    Rated input power
    172 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    89 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U0-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T4-700-830
    Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x64°
    Delivered lumens flux: 18150 lm
    Rated input power: 172 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T4-700-830
    Light distribution
    [T4] 117x64°
    Delivered lumens flux
    18150 lm
    Rated input power
    172 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    104 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T4-700-740
    Light distribution: [T4] Type IV, Asymmetric, Forward throw - 117x65°
    Delivered lumens flux: 21535 lm
    Rated input power: 172 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T4-700-740
    Light distribution
    [T4] 117x65°
    Delivered lumens flux
    21535 lm
    Rated input power
    172 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    124 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B3-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T5-350-730
    Light distribution: [T5] Type V, Symmetric - 117°
    Delivered lumens flux: 10860 lm
    Rated input power: 81 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T5-350-730
    Light distribution
    [T5] 117°
    Delivered lumens flux
    10860 lm
    Rated input power
    81 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    134 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U1-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T5-350-740
    Light distribution: [T5] Type V, Symmetric - 117°
    Delivered lumens flux: 11565 lm
    Rated input power: 81 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T5-350-740
    Light distribution
    [T5] 117°
    Delivered lumens flux
    11565 lm
    Rated input power
    81 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    143 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B3-U1-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T5-350-822
    Light distribution: [T5] Type V, Symmetric - 117°
    Delivered lumens flux: 8215 lm
    Rated input power: 81 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [T5] 117°
    Delivered lumens flux
    8215 lm
    Rated input power
    81 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    107 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U0-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T5-350-830
    Light distribution: [T5] Type V, Symmetric - 117°
    Delivered lumens flux: 10130 lm
    Rated input power: 81 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T5-350-830
    Light distribution
    [T5] 117°
    Delivered lumens flux
    10130 lm
    Rated input power
    81 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    125 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U1-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T5-500-730
    Light distribution: [T5] Type V, Symmetric - 117°
    Delivered lumens flux: 16025 lm
    Rated input power: 120 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T5-500-730
    Light distribution
    [T5] 117°
    Delivered lumens flux
    16025 lm
    Rated input power
    120 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    134 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B4-U1-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T5-500-740
    Light distribution: [T5] Type V, Symmetric - 117°
    Delivered lumens flux: 16955 lm
    Rated input power: 120 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T5-500-740
    Light distribution
    [T5] 117°
    Delivered lumens flux
    16955 lm
    Rated input power
    120 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    141 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B4-U1-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T5-500-822
    Light distribution: [T5] Type V, Symmetric - 117°
    Delivered lumens flux: 11465 lm
    Rated input power: 120 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [T5] 117°
    Delivered lumens flux
    11465 lm
    Rated input power
    120 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    103 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U0-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T5-500-830
    Light distribution: [T5] Type V, Symmetric - 117°
    Delivered lumens flux: 14470 lm
    Rated input power: 120 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T5-500-830
    Light distribution
    [T5] 117°
    Delivered lumens flux
    14470 lm
    Rated input power
    120 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    121 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U1-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T5-700-730
    Light distribution: [T5] Type V, Symmetric - 117°
    Delivered lumens flux: 20670 lm
    Rated input power: 172 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T5-700-730
    Light distribution
    [T5] 117°
    Delivered lumens flux
    20670 lm
    Rated input power
    172 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    119 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B4-U1-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T5-700-740
    Light distribution: [T5] Type V, Symmetric - 117°
    Delivered lumens flux: 22215 lm
    Rated input power: 172 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T5-700-740
    Light distribution
    [T5] 117°
    Delivered lumens flux
    22215 lm
    Rated input power
    172 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    128 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B4-U1-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T5-700-822
    Light distribution: [T5] Type V, Symmetric - 117°
    Delivered lumens flux: 14785 lm
    Rated input power: 172 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [T5] 117°
    Delivered lumens flux
    14785 lm
    Rated input power
    172 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    93 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U0-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-T5-700-830
    Light distribution: [T5] Type V, Symmetric - 117°
    Delivered lumens flux: 18730 lm
    Rated input power: 172 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-T5-700-830
    Light distribution
    [T5] 117°
    Delivered lumens flux
    18730 lm
    Rated input power
    172 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    108 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B4-U1-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-P4-350-730
    Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
    Delivered lumens flux: 10690 lm
    Rated input power: 81 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-P4-350-730
    Light distribution
    [P4] 20x78°
    Delivered lumens flux
    10690 lm
    Rated input power
    81 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    132 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-P4-350-740
    Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
    Delivered lumens flux: 11385 lm
    Rated input power: 81 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-P4-350-740
    Light distribution
    [P4] 20x78°
    Delivered lumens flux
    11385 lm
    Rated input power
    81 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    141 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B2-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-P4-350-822
    Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
    Delivered lumens flux: 8095 lm
    Rated input power: 81 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [P4] 20x78°
    Delivered lumens flux
    8095 lm
    Rated input power
    81 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    104 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U0-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-P4-350-830
    Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
    Delivered lumens flux: 9975 lm
    Rated input power: 81 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-P4-350-830
    Light distribution
    [P4] 20x78°
    Delivered lumens flux
    9975 lm
    Rated input power
    81 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    123 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U1-G1
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-P4-500-730
    Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
    Delivered lumens flux: 15780 lm
    Rated input power: 120 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-P4-500-730
    Light distribution
    [P4] 20x78°
    Delivered lumens flux
    15780 lm
    Rated input power
    120 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    132 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-P4-500-740
    Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
    Delivered lumens flux: 16695 lm
    Rated input power: 120 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-P4-500-740
    Light distribution
    [P4] 20x78°
    Delivered lumens flux
    16695 lm
    Rated input power
    120 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    139 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B3-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-P4-500-822
    Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
    Delivered lumens flux: 11480 lm
    Rated input power: 120 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [P4] 20x78°
    Delivered lumens flux
    11480 lm
    Rated input power
    120 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    100 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B2-U0-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-P4-500-830
    Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
    Delivered lumens flux: 14250 lm
    Rated input power: 120 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-P4-500-830
    Light distribution
    [P4] 20x78°
    Delivered lumens flux
    14250 lm
    Rated input power
    120 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    119 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-P4-700-730
    Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
    Delivered lumens flux: 20350 lm
    Rated input power: 172 W
    Colour temperature: 3000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-P4-700-730
    Light distribution
    [P4] 20x78°
    Delivered lumens flux
    20350 lm
    Rated input power
    172 W
    Colour temperature
    3000 K CRI 70
    Luminaire efficacy
    118 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U1-G3
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-P4-700-740
    Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
    Delivered lumens flux: 21875 lm
    Rated input power: 172 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-P4-700-740
    Light distribution
    [P4] 20x78°
    Delivered lumens flux
    21875 lm
    Rated input power
    172 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    126 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    4 SDCM
    BUG rating
    B3-U1-G3
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-P4-700-822
    Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
    Delivered lumens flux: 14845 lm
    Rated input power: 172 W
    Colour temperature: 2200 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    Light distribution
    [P4] 20x78°
    Delivered lumens flux
    14845 lm
    Rated input power
    172 W
    Colour temperature
    2200 K CRI 80
    Luminaire efficacy
    91 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U0-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000
    Variant code: LL2023.865-EN-P4-700-830
    Light distribution: [P4] Special pedestrian road distribution-right side traffic - 20x78°
    Delivered lumens flux: 18440 lm
    Rated input power: 172 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off, DALI, AutoDIM, StepDIM
    LL2023.865-EN-P4-700-830
    Light distribution
    [P4] 20x78°
    Delivered lumens flux
    18440 lm
    Rated input power
    172 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    107 lm/W
    Lamp
    80 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B3-U1-G2
    Lifetime L90B10 (hour)
    >102,000
    Lifetime L90B50 (hour)
    >102,000

    Extras

    10 kV

    [SP10]

    10 kV

    External surge protection
    NEMA socket - 7 Pin

    [NM7]

    NEMA socket - 7 Pin

    Connectivity
    Constant light output

    [CLO]

    Constant light output

    Light output
    Class II

    [C2]

    Class II

    Consult the factory
    120-277V 50/60Hz

    [UNI]

    120-277V 50/60Hz

    Consult the factory
    Double powder coating

    [DPC]

    Double powder coating

    Luminaire body options

    Poles (To be ordered separately)

    Related products

    All flux and power values derived following appropriate IES, CIE and applicable standards.
    Descriptions
    Variants

    Light distribution

    Drive current

    Type I, Asymmetric, Side throw
    [T1]

    Type I, Asymmetric, Side throw

    Type II, Asymmetric, Side throw
    [T2]

    Type II, Asymmetric, Side throw

    Type III, Asymmetric, Side throw
    [T3]

    Type III, Asymmetric, Side throw

    Type IV, Asymmetric, Forward throw
    [T4]

    Type IV, Asymmetric, Forward throw

    Type V, Symmetric
    [T5]

    Type V, Symmetric

    Special pedestrian road distribution-right side traffic
    [P4]

    Special pedestrian road distribution-right side traffic

    Drive current

    350 mA
    [350]

    350 mA

    500 mA
    [500]

    500 mA

    700 mA
    [700]

    700 mA

    Colour temperature

    2200 K CRI 80
    [822]

    2200 K CRI 80

    3000 K CRI 70
    [730]

    3000 K CRI 70

    3000 K CRI 80
    [830]

    3000 K CRI 80

    4000 K CRI 70
    [740]

    4000 K CRI 70

    Options

    Control

    Product colours

    On/Off
    [ONOFF]

    On/Off

    DALI
    [DALI]

    DALI

    AutoDIM
    [AUTO]

    AutoDIM

    StepDIM
    [STEP]

    StepDIM

    Product colours

    Anthracite grey
    [HM3]

    Anthracite grey

    Light grey
    [HM4]

    Light grey

    Custom colour (Please specify RAL code)
    [CC]

    Custom colour (Please specify RAL code)

    IALD LIRC
    IES
    IDA UK


    Newsletter Subscription

    Subscribe to our corporate newsletter to follow our new projects and campaigns.

    HEPER Lighting Global
    HEPER Aydınlatma Türkiye
    HEPER Lighting USA
    HEPER Beleuchtung Deutschland
