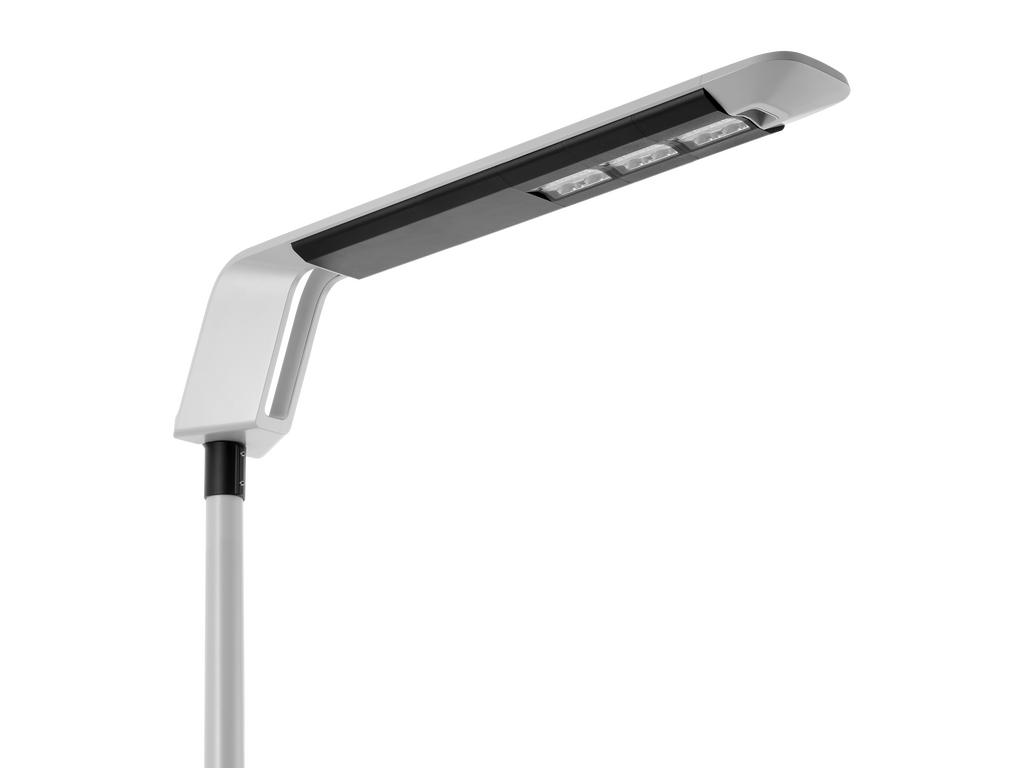

L&C LUMINAIRE S&C 3 Module

L&C LUMINAIRE S&C 3 ModuleL&C LUMINAIRE S&C 3 Module
L&C LUMINAIRE S&C 3 ModuleL&C LUMINAIRE S&C 3 Module

LL2017.663-EN

CEIK08IP66Class IClass II
Variants
Light distribution
[T2-S] 130° x 85°
Nominal LED lumens flux
14400 lm, 13380 lm
Nominal LED power
96 W (700 mA)
Colour temperature
4000 K CRI 70, 3000 K CRI 80
Options
Control
On/Off, 1-10V, DALI, DynaDIM
Input voltage
220-240V 50/60Hz, 120-277V 50/60Hz
Insulation class
Class I, Class II
Product colours
Black (Textured)Dark grey (Textured)Anthracite grey (Textured)Light grey (Textured)White (Textured)Bronze (Textured)Custom Colour (Please specify RAL code)
Extras
External surge protection
10 kV
Connectivity
NEMA 7 Socket
Finishing option
Double coating
Light output
Constant light output

Mounting
Direct pole or side bracket mountable. Spigot: Ø60 mm x 100 mm
Housing
Corrosion resistant aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
Silicone
Lens / Reflector
High reflectance aluminium coating, multifaceted micro reflector
Glass / Diffusor
Bio-based, enriched with bisphenol A diffusor
Impact protection
IK08
Ingress protection
IP66
Wind catching area (EPA)
0.31 m²
Weight
9.04 kg
LED module
Multi-chip high power LEDs on metal-core PCB
Driver
Thermally-separated internal LED driver
Driver surge protection
4/4 kV
Power factor
> 0.97
Through wiring
Single cable entry
Cable
0.5 m of flexible cable

Downloads


Variants


Light distribution
Asymmetric, Side throw, Short
[T2-S] Asymmetric, Side throw, Short - 130° x 85°
Nominal LED lumens flux
14400 lm
13380 lm
Nominal LED power
96 W
Colour temperature
4000 K CRI 70
3000 K CRI 80

Variant code

Variant name

Optic

Nominal LED lumens flux


Variant code: LL2017.663-EN-T2-S-700-740
Variant name: MILESTONE 12 - 96W - 700mA - 4000K CRI 70
Optic: [T2-S] Asymmetric, Side throw, Short - 130° x 85°
Nominal LED lumens flux: 14400 lm
LL2017.663-EN-T2-S-700-740
Nominal LED lumens flux
14400 lm
Nominal LED power
96 W
Rated luminaire lumens flux
11925 lm
Rated luminaire power
105 W
Luminaire efficacy
114 lm/W
Lamp
12 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2
Variant code: LL2017.663-EN-T2-S-700-830
Variant name: MILESTONE 12 - 96W - 700mA - 3000K CRI 80
Optic: [T2-S] Asymmetric, Side throw, Short - 130° x 85°
Nominal LED lumens flux: 13380 lm
LL2017.663-EN-T2-S-700-830
Nominal LED lumens flux
13380 lm
Nominal LED power
96 W
Rated luminaire lumens flux
11091 lm
Rated luminaire power
105 W
Luminaire efficacy
106 lm/W
Lamp
12 LED
MacAdam Ellipse
3 SDCM
BUG rating
B2-U0-G2

Poles



Descriptions
Variants

Light distribution

Drive current


Asymmetric, Side throw, Short
[T2-S]

Asymmetric, Side throw, Short

Drive current


700 mA
[700]

700 mA

Colour temperature


3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

1-10V
[DIM]

1-10V

DALI
[DALI]

DALI

DynaDIM
[DYNA]

DynaDIM

Input voltage


220-240V 50/60Hz
[EN]

220-240V 50/60Hz

120-277V 50/60Hz
[UNI]

120-277V 50/60Hz

Insulation class

Product colours


Class I
[C1]

Class I

Class II
[C2]

Class II

Product colours


Black (Textured)
[HM1]

Black (Textured)

Dark grey (Textured)
[HM2]

Dark grey (Textured)

Anthracite grey (Textured)
[HM3]

Anthracite grey (Textured)

Light grey (Textured)
[HM4]

Light grey (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom Colour (Please specify RAL code)
[CC]

Custom Colour (Please specify RAL code)

Extras

External surge protection

Connectivity


10 kV
[SP10-EN]

10 kV

Connectivity


NEMA 7 Socket
[NM7]

NEMA 7 Socket

Finishing option

Light output


Double coating
[DC]

Double coating

Light output


Constant light output
[CLO]

Constant light output
