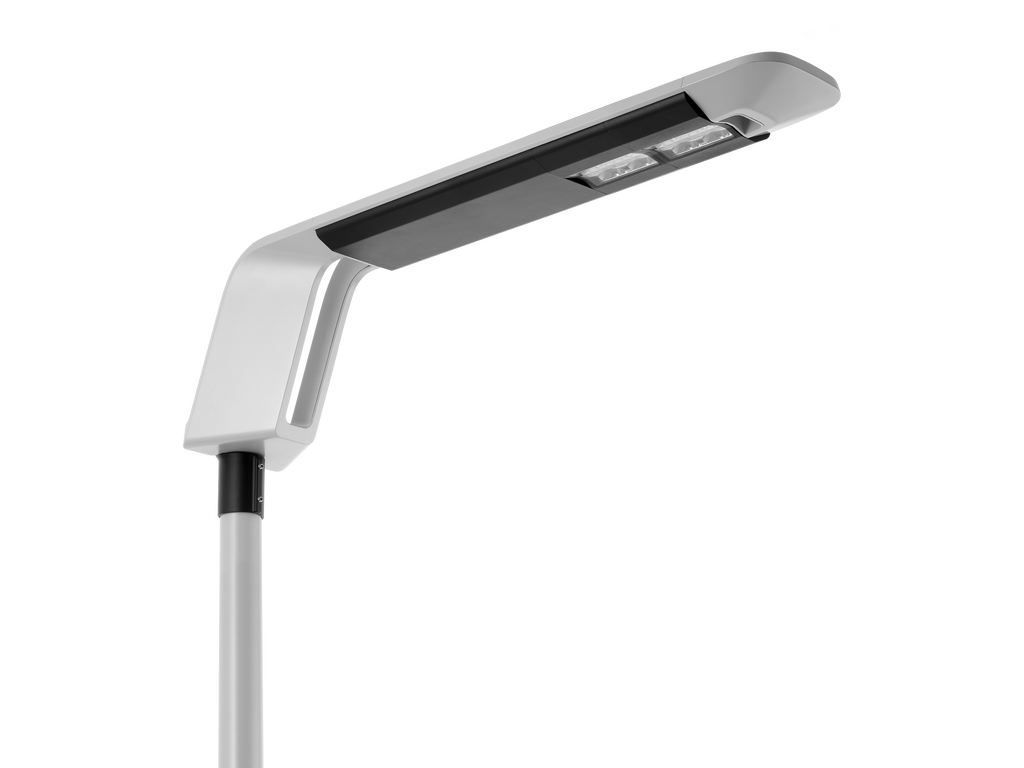

L&C LUMINAIRE L 2 ModuleL&C LUMINAIRE L 2 Module
Light distribution
[T2] 130x85°
Luminaire luminous flux
5891 lm
Rated input power
68 W
CCT
3000 K
CRI
CRI 80
Control
On/Off, DALI, AutoDIM
Product colours
Anthracite greyLight greyCustom colour (Please specify RAL code)
Extras
External surge protection
10 kV
Connectivity
NEMA socket - 7 Pin
Consult the factory
Class II, 120-277V 50/60Hz
Luminaire body options
Marine grade finish


Luminaire efficacy
84 lm/W
Colour deviation
3 SDCM
BUG rating
B1-U0-G1
Lifetime L90B50 (hour)
>60, 000
Housing
Marine grade aluminum housing
Driver
Integral LED driver
Input voltage
220-240V 50/60Hz
Notes
This product can be supplied with Insulation class (Class II) upon request. Please contact factory.

Configurator
Project name
Type
Quantity
Date
Note
Variant order code

LL2017.662-EN-T2-700-830-___-___-___-___-___-___

Variants
Light distribution
[T2]
Type II, Asymmetric, Side throw
130x85°

Rated input power
[700]
68 W

Colour temperature
[830]
3000 K CRI 80
Options
Control
[ONOFF]
On/Off
[DALI]
DALI
[AUTO]
AutoDIM

Product colours
[HM3]Anthracite grey
Anthracite grey
[HM4]Light grey
Light grey
[CC]Custom colour (Please specify RAL code)
Custom colour (Please specify RAL code)
Extras
External surge protection
[SP10]
10 kV
Connectivity
[NM7]
NEMA socket - 7 Pin
Consult the factory
[C2]
Class II
[UNI]
120-277V 50/60Hz
Luminaire body options
[MGF]
Marine grade finish


Technical details



Certificates
CE, UKCA
Mounting
Direct pole or side bracket mountable. Spigot: Ø60 mm x 100 mm
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Silicone
Lens / Reflector
High reflectance aluminium coating, multifaceted micro reflector
Glass / Diffusor
Bio-based, enriched with bisphenol A diffusor
Impact protection
IK08
Ingress protection
IP66
Insulation class
Class I
Wind catching area (EPA)
0.27 m²
Weight
8.16 kg
LED module
Multi-chip high power LEDs on metal-core PCB
Driver surge protection
4/4 kV
Power factor
> 0.97
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
0.5 m of flexible cable

Extras


10 kV

[SP10]

10 kV

External surge protection
NEMA socket - 7 Pin

[NM7]

NEMA socket - 7 Pin

Connectivity
Class II

[C2]

Class II

Consult the factory
120-277V 50/60Hz

[UNI]

120-277V 50/60Hz

Consult the factory
Marine grade finish

[MGF]

Marine grade finish

Luminaire body options
All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Type II, Asymmetric, Side throw
[T2]

Type II, Asymmetric, Side throw

Drive current


700 mA
[700]

700 mA

Colour temperature


3000 K CRI 80
[830]

3000 K CRI 80

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

DALI
[DALI]

DALI

AutoDIM
[AUTO]

AutoDIM

Product colours


Anthracite grey
[HM3]

Anthracite grey

Light grey
[HM4]

Light grey

Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)
