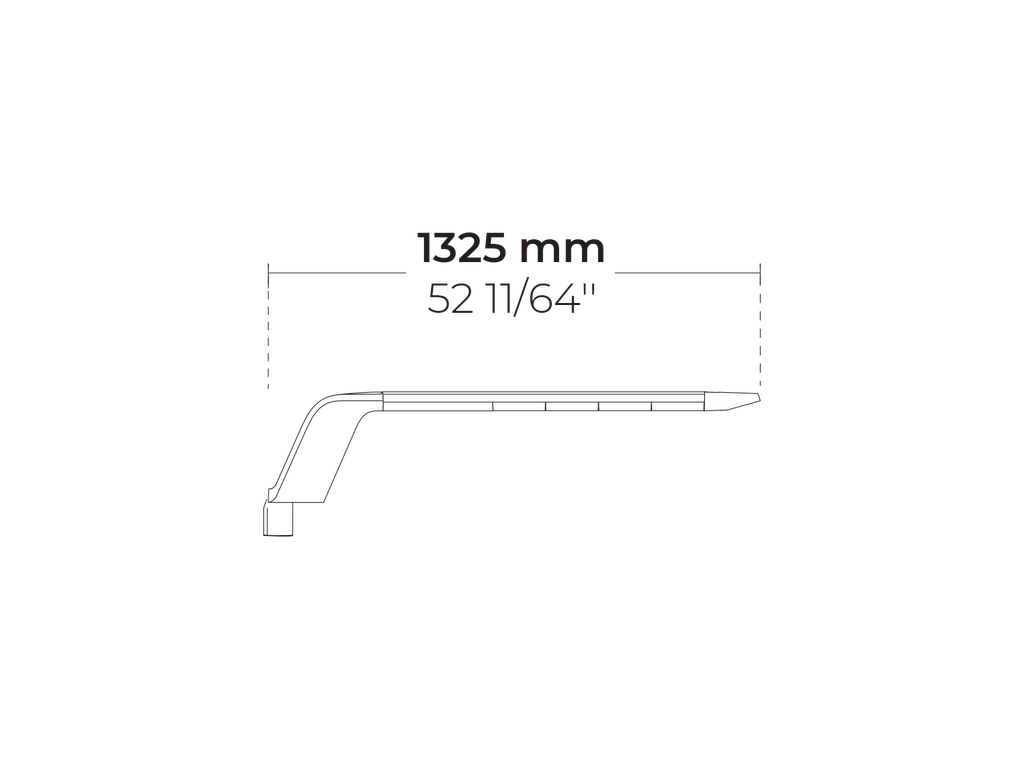

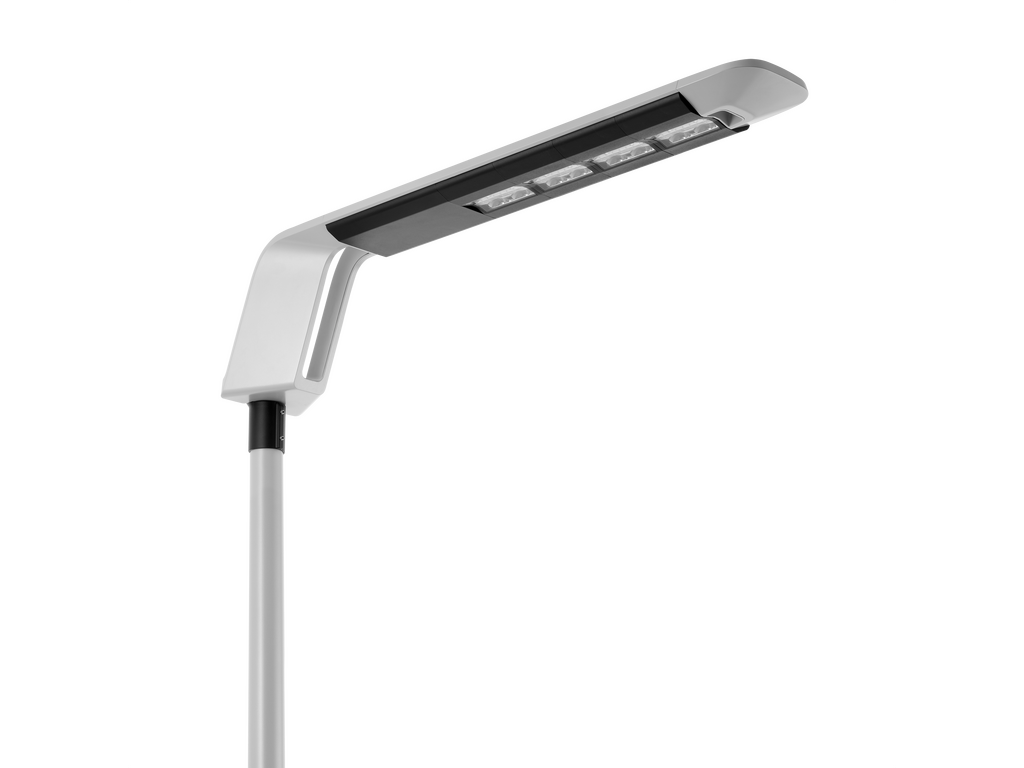

L&C LUMINAIRE 4 Module

L&C LUMINAIRE 4 ModuleL&C LUMINAIRE 4 Module
L&C LUMINAIRE 4 ModuleL&C LUMINAIRE 4 Module

LL2016.664-EN

CEIK08IP66Class IClass II
Variants
Light distribution
[T2-S] 130° x 85°
Nominal LED lumens flux
17840 - 19200 lm
Nominal LED power
128 W (700 mA)
Rated luminaire lumens flux
14788 - 15900 lm
Rated luminaire power
135 W
Colour temperature
4000 K CRI 70, 3000 K CRI 80
BUG rating
B3-U0-G2
Lifetime L90B50
>60, 000 hours
Lifetime L80B50
>60, 000 hours
Options
Control
On/Off, 1-10V, DALI, DynaDIM
Input voltage
220-240V 50/60Hz, 120-277V 50/60Hz
Insulation class
Class I, Class II
Product colours
Black (Textured)Dark grey (Textured)Anthracite grey (Textured)Light grey (Textured)White (Textured)Bronze (Textured)Custom Colour (Please specify RAL code)
Extras
External surge protection
10 kV
Connectivity
NEMA 7 Socket
Finishing options
Double coating
Light output
Constant light output
Mounting
Direct pole or side bracket mountable. Spigot: Ø60 mm x 100 mm
Housing
Corrosion resistant aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
Silicone
Lens / Reflector
High reflectance aluminium coating, multifaceted micro reflector
Glass / Diffusor
Bio-based, enriched with bisphenol A diffusor
Impact protection
IK08
Ingress protection
IP66
Wind catching area (EPA)
0.33 m²
Weight
9.39 kg
LED module
Multi-chip high power LEDs on metal-core PCB
Driver
Thermally-separated internal LED driver
Driver surge protection
4/4 kV
Power factor
> 0.99
Through wiring
Single cable entry
Cable
0.5 m of flexible cable

Downloads

Variants

Light distribution
Asymmetric, Side throw, Short
[T2-S] Asymmetric, Side throw, Short - 130° x 85°
Nominal LED lumens flux
19200 lm
17840 lm
Nominal LED power
128 W
Colour temperature
4000 K CRI 70
3000 K CRI 80

Variant code

Variant name

Optic

Nominal LED lumens flux



Variant code: LL2016.664-EN-T2-S-700-740
Variant name: MILESTONE 16 - 128W - 700mA - 4000K CRI 70
Optic: [T2-S] Asymmetric, Side throw, Short - 130° x 85°
Nominal LED lumens flux: 19200 lm
LL2016.664-EN-T2-S-700-740
Nominal LED lumens flux
19200 lm
Nominal LED power
128 W
Rated luminaire lumens flux
15900 lm
Rated luminaire power
135 W
Luminaire efficacy
118 lm/W
Lamp
16 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G2
Lifetime L90B50
>60,000 hours
Lifetime L80B50
>60,000 hours
Variant code: LL2016.664-EN-T2-S-700-830
Variant name: MILESTONE 16 - 128W - 700mA - 3000K CRI 80
Optic: [T2-S] Asymmetric, Side throw, Short - 130° x 85°
Nominal LED lumens flux: 17840 lm
LL2016.664-EN-T2-S-700-830
Nominal LED lumens flux
17840 lm
Nominal LED power
128 W
Rated luminaire lumens flux
14788 lm
Rated luminaire power
135 W
Luminaire efficacy
110 lm/W
Lamp
16 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G2
Lifetime L90B50
>60,000 hours
Lifetime L80B50
>60,000 hours

Poles

Conical aluminum poles with flange plate
Variant code
Height
Diameter
Spigot diameter
Variant code: PAFK.D114-SC60-H4
Height: 4 m
Diameter: Ø114 mm
Spigot diameter: Ø60 mm
Variant code: PAFK.D114-SC76-H4
Height: 4 m
Diameter: Ø114 mm
Spigot diameter: Ø76 mm
Variant code: PAFK.D122-SC60-H5
Height: 5 m
Diameter: Ø122 mm
Spigot diameter: Ø60 mm
Variant code: PAFK.D122-SC60-H6
Height: 6 m
Diameter: Ø122 mm
Spigot diameter: Ø60 mm
Variant code: PAFK.D122-SC76-H5
Height: 5 m
Diameter: Ø122 mm
Spigot diameter: Ø76 mm
Variant code: PAFK.D122-SC76-H6
Height: 6 m
Diameter: Ø122 mm
Spigot diameter: Ø76 mm
Variant code: PAFK.D148-SC60-H6
Height: 6 m
Diameter: Ø148 mm
Spigot diameter: Ø60 mm
Variant code: PAFK.D148-SC76-H6
Height: 6 m
Diameter: Ø148 mm
Spigot diameter: Ø76 mm
Variant code: PAFK.D165-SC76-H8
Height: 8 m
Diameter: Ø165 mm
Spigot diameter: Ø76 mm
Variant code: PAFK.D165-SC90-H8
Height: 8 m
Diameter: Ø165 mm
Spigot diameter: Ø90 mm
Conical aluminum poles with embedded base
Variant code
Height
Diameter
Spigot diameter
Variant code: PABK.D114-SC60-H4
Height: 4 m
Diameter: Ø114 mm
Spigot diameter: Ø60 mm
Variant code: PABK.D114-SC76-H4
Height: 4 m
Diameter: Ø114 mm
Spigot diameter: Ø76 mm
Variant code: PABK.D122-SC60-H5
Height: 5 m
Diameter: Ø122 mm
Spigot diameter: Ø60 mm
Variant code: PABK.D122-SC60-H6
Height: 6 m
Diameter: Ø122 mm
Spigot diameter: Ø60 mm
Variant code: PABK.D122-SC76-H5
Height: 5 m
Diameter: Ø122 mm
Spigot diameter: Ø76 mm
Variant code: PABK.D122-SC76-H6
Height: 6 m
Diameter: Ø122 mm
Spigot diameter: Ø76 mm
Variant code: PABK.D148-SC60-H6
Height: 6 m
Diameter: Ø148 mm
Spigot diameter: Ø60 mm
Variant code: PABK.D148-SC76-H6
Height: 6 m
Diameter: Ø148 mm
Spigot diameter: Ø76 mm
Variant code: PABK.D165-SC76-H8
Height: 8 m
Diameter: Ø165 mm
Spigot diameter: Ø76 mm
Variant code: PABK.D165-SC90-H8
Height: 8 m
Diameter: Ø165 mm
Spigot diameter: Ø90 mm
All flux and power values derived following appropriate IES, CIE and applicable standards.
Descriptions
Variants

Light distribution

Drive current

Asymmetric, Side throw, Short

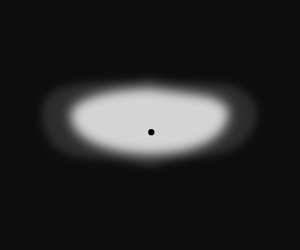

[T2-S]

Asymmetric, Side throw, Short

Drive current

700 mA
[700]

700 mA

Colour temperature

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Input voltage

On/Off
[ONOFF]

On/Off

1-10V
[1-10V]

1-10V

DALI
[DALI]

DALI

DynaDIM
[DYNA]

DynaDIM

Input voltage

220-240V 50/60Hz
[EN]

220-240V 50/60Hz

120-277V 50/60Hz
[UNI]

120-277V 50/60Hz

Insulation class

Product colours

Class I
[C1]

Class I

Class II
[C2]

Class II

Product colours

Black (Textured)
[HM1]

Black (Textured)

Dark grey (Textured)
[HM2]

Dark grey (Textured)

Anthracite grey (Textured)
[HM3]

Anthracite grey (Textured)

Light grey (Textured)
[HM4]

Light grey (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom Colour (Please specify RAL code)
[CC]

Custom Colour (Please specify RAL code)

Extras

External surge protection

Connectivity

10 kV
[SP10]

10 kV

Connectivity

NEMA 7 Socket
[NM7]

NEMA 7 Socket

Finishing options

Light output

Double coating
[DC]

Double coating

Light output

Constant light output
[CLO]

Constant light output
