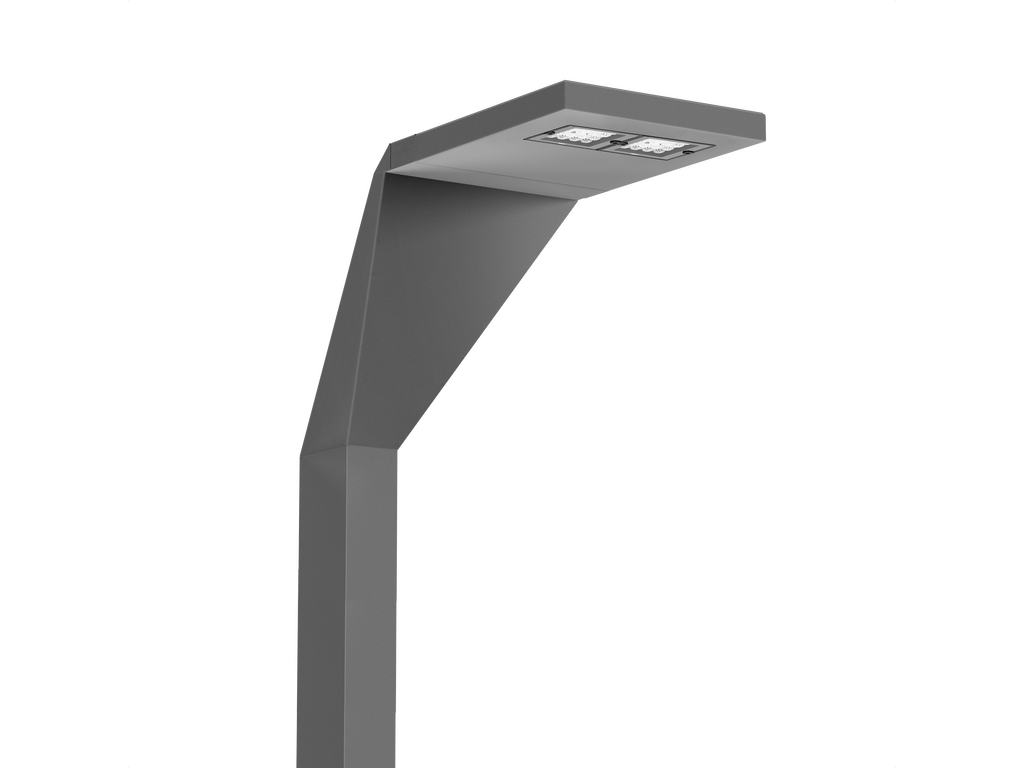

    WINGS AFX 2 Module

    WINGS AFX 2 ModuleWINGS AFX 2 Module

    LL2012.862-EN

    CEUKCAIK08IP66Class I

    Downloads

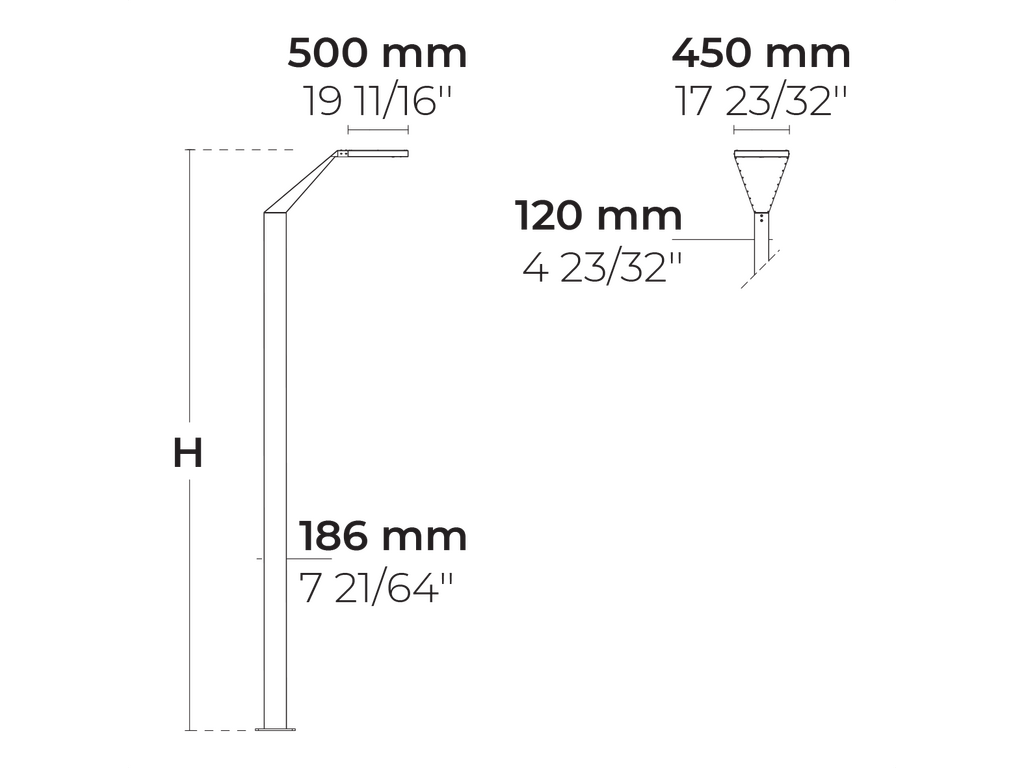

    WINGS AFX 2 ModuleWINGS AFX 2 Module
    Light distribution
    [P4] 20x78°, [T1] 111x48°, [T2] 133x48°, [T2-2] 149x54°, [T3] 143x63°, [T4] 117x64°, [T5] 117°
    Luminaire luminous flux
    2985 - 9035 lm
    Rated input power
    34 - 67 W
    CCT
    2200K, 2700K, 3000K, 4000K
    CRI
    Ra70, Ra80
    Control
    On/Off
    Product colours
    BlackDark greyAnthracite greyLight greyWhiteBronzeCustom colour (Please specify RAL code)
    Height
    3m, 4m, 5m, 6m, Custom height (Please specify)
    Extras
    Light output
    Prismatic Glass
    Consult the factory
    120-277V 50/60Hz
    Luminaire body options
    Double powder coating

    Luminaire efficacy
    80 - 144 lm/W
    Colour deviation
    3 SDCM, 4 SDCM
    BUG rating
    B1-U0-G1, B2-U1-G1, B2-U0-G1, B3-U0-G1, B1-U1-G1, B1-U1-G0, B2-U0-G0, B3-U0-G0, B1-U0-G0
    Lifetime L90B10 (hour)
    >102, 000
    Housing
    Marine grade aluminum housing
    Driver
    Integral LED driver
    Input voltage
    220-240V 50/60Hz
    Notes
    Prismatic Glass enhances visual comfort and alters light distribution, reducing delivered lumens by approximately 10%. For specifications with Prismatic Glass and photometry files, please contact the factory.
    Configurator
    Project name
    Type
    Quantity
    Date
    Note
    Variant order code

    LL2012.862-EN-___-___-___-ONOFF-EN-C1-___-___-___-___-___

    Variants required



    Variants
    Light distribution
    [P4]
    Special pedestrian road distribution-right side traffic
    20x78°
    [T1]
    Type I, Asymmetric, Side throw
    111x48°
    [T2]
    Type II, Asymmetric, Side throw
    133x48°
    [T2-2]
    Type II, Asymmetric, Side throw
    149x54°
    [T3]
    Type III, Asymmetric, Side throw
    143x63°
    [T4]
    Type IV, Asymmetric, Forward throw
    117x64°
    [T5]
    Type V, Symmetric
    117°

    Rated input power
    [350]
    34 W
    [500]
    48 W
    [700]
    67 W

    Colour temperature
    [822]
    2200 K CRI 80
    [827]
    2700 K CRI 80
    [830]
    3000 K CRI 80
    [740]
    4000 K CRI 70
    [840]
    4000 K CRI 80
    Options
    Control
    [ONOFF]
    On/Off

    Product colours
    [HM1]Black
    Black
    [HM2]Dark grey
    Dark grey
    [HM3]Anthracite grey
    Anthracite grey
    [HM4]Light grey
    Light grey
    [HM5]White
    White
    [HM6]Bronze
    Bronze
    [CC]Custom colour (Please specify RAL code)
    Custom colour (Please specify RAL code)

    Height
    [H03]
    3m
    [H04]
    4m
    [H05]
    5m
    [H06]
    6m
    [HC]
    Custom height (Please specify)
    Extras
    Light output
    [PG]
    Prismatic Glass
    Consult the factory
    [UNI]
    120-277V 50/60Hz
    Luminaire body options
    [DPC]
    Double powder coating


    Variants required

    Technical details


    Certificates
    CE, UKCA
    Mounting
    Surface mountable
    Finishing
    Chromate conversion pretreatment followed by electrostatic powder coating
    Fasteners
    Stainless steel (AISI 304 / EN 1.4301 grade)
    Gasket
    Liquid silicone
    Lens / Reflector
    PMMA lens with high optical efficiency
    Glass / Diffusor
    Tempered safety glass
    Impact protection
    IK08
    Ingress protection
    IP66
    Insulation class
    Class I
    Weight
    50.2 kg (3 m), 57.24 kg (4 m)
    LED module
    High power LEDs on metal-core PCB
    Driver surge protection
    10/6 kV
    Power factor
    > 0.95
    Through wiring
    Single cable entry
    Operating temperature
    -40...50°C
    Cable
    0.5 m of flexible cable
    Packing box dimensions
    45*8*58 cm
    Pole detail
    Poles are supplied with flange plate. Flange cover and anchorage can be ordered separately. Embedded base is optional

    Extras

    Prismatic Glass

    [PG]

    Prismatic Glass

    Light output
    120-277V 50/60Hz

    [UNI]

    120-277V 50/60Hz

    Consult the factory
    Double powder coating

    [DPC]

    Double powder coating

    Luminaire body options

    Poles (Included)
