HANDRA Forward

HANDRA ForwardHANDRA Forward
HANDRA ForwardHANDRA Forward

LH5004.595-US

IK10IP65Class I
Variants
Light distribution
[SLFH]
Nominal lumens flux
109 lm, 105 lm
Power
1 W (350 mA)
Colour temperature
4000 K CRI 70, 3000 K CRI 80
Options
Control
On/Off
Input voltage
120-277V 50/60Hz
Insulation class
Class I
Product colours
Black (Textured)Dark grey (Textured)Anthracite grey (Textured)Light grey (Textured)White (Textured)Bronze (Textured)Custom Colour (Please specify RAL code)

Housing
Corrosion resistant die-cast aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
Liquid gasket
Lens / Reflector
High reflectance aluminium coating
Glass / Diffusor
Tempered safety glass
Impact protection
IK10
Ingress protection
IP65
LED module
High power LEDs on metal-core PCB
Driver
External LED driver
Driver surge protection
3/3 kV
Power factor
> 0.40
Through wiring
Single cable entry
Cable
0.2 m of flexible cable

Downloads


Variants


Light distribution

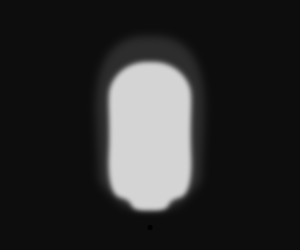

Special linear, Forward throw
[SLFH] Special linear, Forward throw
Nominal lumens flux
109 lm
105 lm
Power
1 W
Colour temperature
4000 K CRI 70
3000 K CRI 80

Variant code

Variant name

Optic

Nominal lumens flux


Variant code: LH5004.595-US-SLFH-350-740
Variant name: MDBW 1 - 1W - 350mA - 4000K CRI 70
Optic: [SLFH] Special linear, Forward throw
Nominal lumens flux: 109 lm
Variant code: LH5004.595-US-SLFH-350-830
Variant name: MDBW 1 - 1W - 350mA - 3000K CRI 80
Optic: [SLFH] Special linear, Forward throw
Nominal lumens flux: 105 lm

Descriptions
Variants

Light distribution

Drive current


Special linear, Forward throw
[SLFH]

Special linear, Forward throw

Drive current


350 mA
[350]

350 mA

Colour temperature


3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

Input voltage


120-277V 50/60Hz
[UNI]

120-277V 50/60Hz

Insulation class

Product colours


Class I
[C1]

Class I

Product colours


Black (Textured)
[HM1]

Black (Textured)

Dark grey (Textured)
[HM2]

Dark grey (Textured)

Anthracite grey (Textured)
[HM3]

Anthracite grey (Textured)

Light grey (Textured)
[HM4]

Light grey (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom Colour (Please specify RAL code)
[CC]

Custom Colour (Please specify RAL code)
