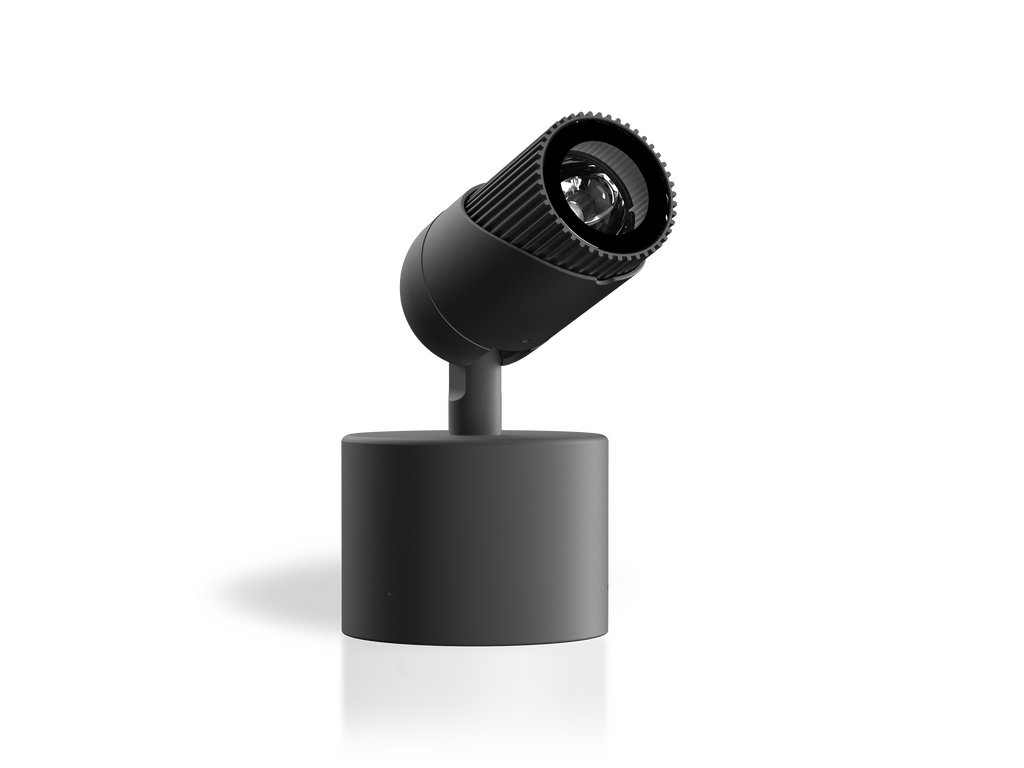

SPARK Integral

Name: SPARK Integral
Brand: HEPER
SKU: LF8040.531-EN
Availability: InStock

UPCOMING

LF8040.531-EN

Downloads

Photometry files (IES)

0.11 MB ZIP

Photometry files (LDT)

0.1 MB ZIP

Technical drawing

0.05 MB PDF

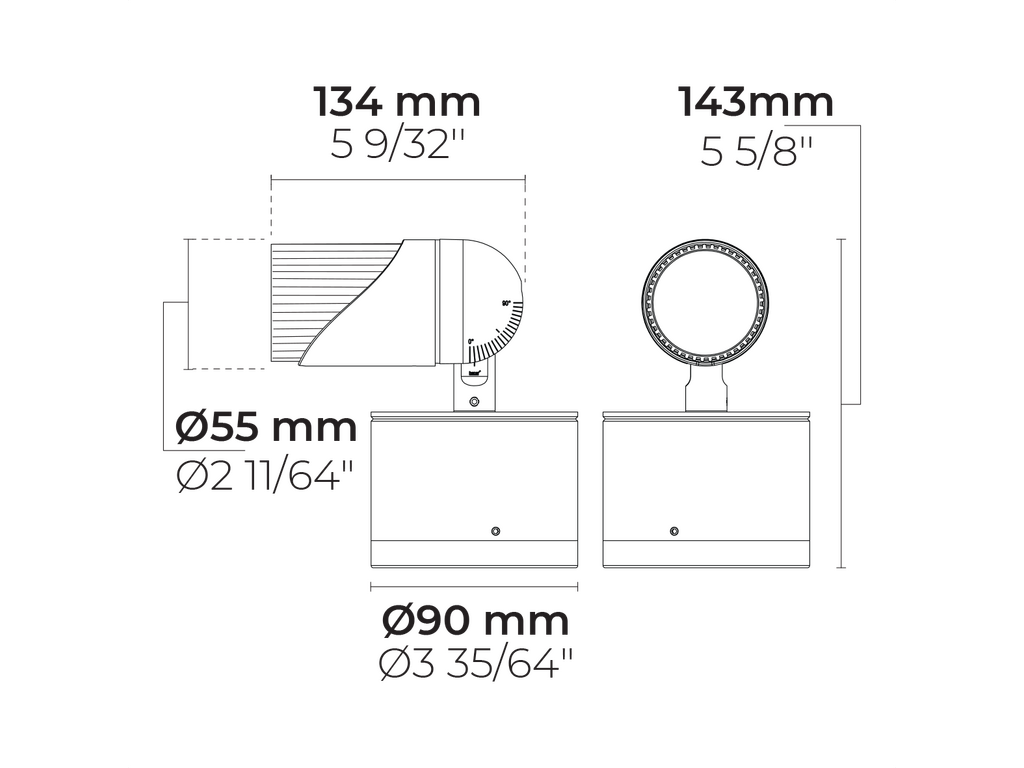

Technical drawing (Image)

Light distribution

[S] 8°, [VN-2] 18°, [N] 24°, [MN-2] 36°, [M] 50°

Luminaire luminous flux

368 - 717 lm

Rated input power

8 - 10 W

CCT

2700K, 3000K, 4000K

CRI

Ra90

Control

On/Off

Product colours

Extras

Light output

Blue Color Filter, Green Color Filter, Honeycomb, Red Color Filter, Yellow Color Filter

Mounting options

Pole Mount, Wall Mount

Consult the factory

120-277V 50/60Hz

Luminaire body options

Double powder coating

Luminaire efficacy

46 - 72 lm/W

Colour deviation

3 SDCM

Lifetime L90B50 (hour)

>50000

Housing

Marine grade aluminum housing

Driver

Integral LED driver

Input voltage

220-240V 50/60Hz

Configurator

Project name

Type

Quantity

Date

Note

Variant order code

LF8040.531-EN-_-_-_-ONOFF-EN-C1-_-_-_-_-_

Variants required

Variants

Light distribution

[S]
Spot
8°

[VN-2]
Very narrow
18°

[N]
Narrow
24°

[MN-2]
Medium narrow
36°

[M]
Medium
50°

Rated input power

[500]
8 W

[250]
10 W

Colour temperature

[927]
2700 K CRI 90

[930]
3000 K CRI 90

[940]
4000 K CRI 90

Options

Control

[ONOFF]
On/Off

Product colours

[HM1]

Black

[HM2]

Dark grey

[HM3]

Anthracite grey

[HM4]

Light grey

[HM5]

White

[HM6]

Bronze

[CC]

Custom colour (Please specify RAL code)

Extras

Light output

[BCF]
Blue Color Filter

[GCF]
Green Color Filter

[HNY]
Honeycomb

[RCF]
Red Color Filter

[YCF]
Yellow Color Filter

Mounting options

[PM]
Pole Mount

[WM]
Wall Mount

Consult the factory

[UNI]
120-277V 50/60Hz

Luminaire body options

[DPC]
Double powder coating

Variants required

Technical details

Certificates

CE, UKCA

Mounting

Surface mountable via a stationary base (standard), spike andwall-mountable via a bracket (both optional)

Tilt angle

+90°/0°

Rotation angle

0°/+355°

Finishing

Knurled surface in black anodized aluminum and body in chromate conversion pretreatment followed by electrostatic powder coating

Fasteners

Stainless steel (AISI 316L)

Gasket

EPDM gasket (Shore A 25-30)

Lens / Reflector

PMMA lens with high optical efficiency

Glass / Diffusor

Tempered safety glass

Impact protection

IK07

Ingress protection

IP66

Insulation class

Class I

LED module

High efficacy COB LED with long time reliability

Driver surge protection

1/1 kV

Power factor

> 0.91

Through wiring

Single cable entry

Operating temperature

-40...50°C

Cable

0.2 m of flexible cable

Accessories (To be ordered separately)

Mounting accessories

Tree belt for SPARK

180901194

Mounting accessories

Stake

160405040

Technical drawing

0.04 MB PDF

Optical accessories

Snoot for SPARK

101652202

Technical drawing

0.16 MB PDF

Optical accessories

Visor for SPARK

101652204

Technical drawing

0.17 MB PDF

Extras

[BCF]

Blue Color Filter

Light output

[GCF]

Green Color Filter

Light output

[HNY]

Honeycomb

Light output

[RCF]

Red Color Filter

Light output

[YCF]

Yellow Color Filter

Light output

[PM]

Pole Mount

Mounting options

[WM]

Wall Mount

Mounting options

[UNI]

120-277V 50/60Hz

Consult the factory

[DPC]

Double powder coating

Luminaire body options

All flux and power values derived following appropriate IES, CIE and applicable standards.
