    PINA S

    UPCOMING
    PINA SPINA S

    LF8037.530-EN

    CEUKCAIK08IP65Class III

    Downloads

    PINA SPINA S
    Light distribution
    [VN] 15°, [N] 25°, [MN] 35°, [M] 55°
    Luminaire luminous flux
    1079 - 1352 lm
    Rated input power
    15 W
    CCT
    2700K, 3000K, 4000K
    CRI
    Ra90
    Product colours
    BlackDark greyAnthracite greyLight greyWhiteBronzeCustom colour (Please specify RAL code)
    Extras
    Light output
    Honeycomb
    Mounting options
    Nipple Mount
    Luminaire body options
    Double powder coating

    Luminaire efficacy
    72 - 90 lm/W
    Colour deviation
    3 SDCM
    Lifetime L90B50 (hour)
    >50000
    Housing
    Marine grade aluminum housing
    Driver

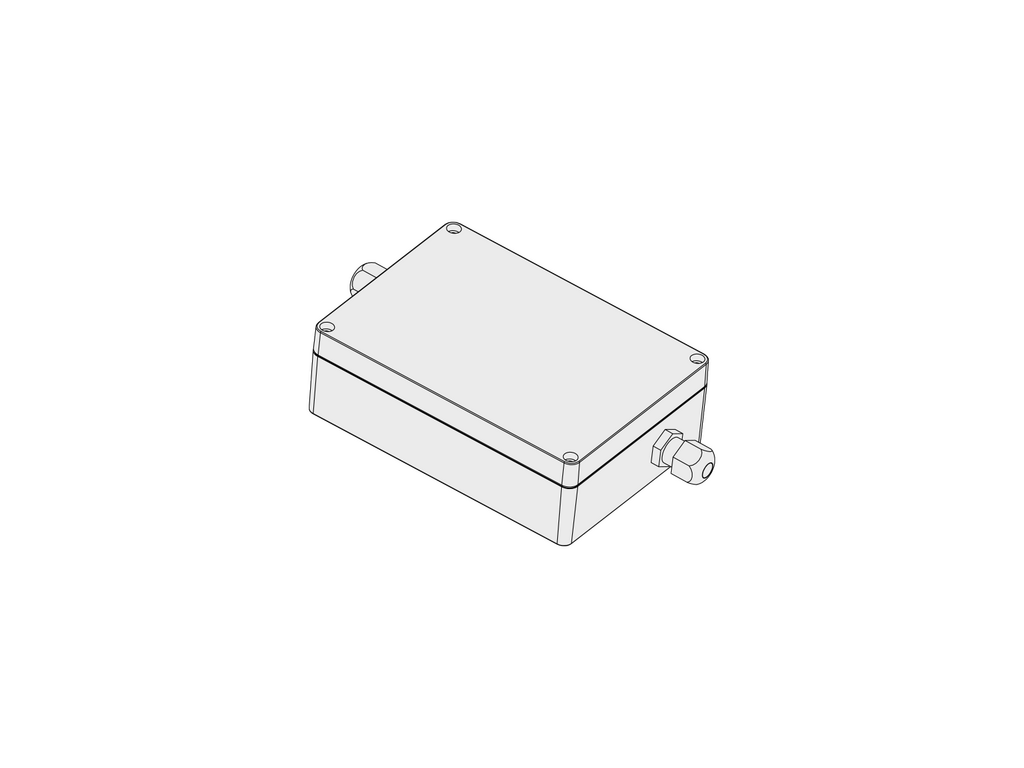

    Remote LED driver
    Input voltage
    36VDC (Max) 350mA
    Configurator
    Project name
    Type
    Quantity
    Date
    Note
    Variant order code

    LF8037.530-EN-___-350-___-___-CC-36V-350-C3-___-___-___-___

    Variants required



    Variants
    Light distribution
    [VN]
    Very narrow
    15°
    [N]
    Narrow
    25°
    [MN]
    Medium narrow
    35°
    [M]
    Medium
    55°

    Rated input power
    [350]
    15 W

    Colour temperature
    [927]
    2700 K CRI 90
    [930]
    3000 K CRI 90
    [940]
    4000 K CRI 90
    Options
    Control

    Product colours
    [HM1]Black
    Black
    [HM2]Dark grey
    Dark grey
    [HM3]Anthracite grey
    Anthracite grey
    [HM4]Light grey
    Light grey
    [HM5]White
    White
    [HM6]Bronze
    Bronze
    [CC]Custom colour (Please specify RAL code)
    Custom colour (Please specify RAL code)
    Extras
    Light output
    [HNY]
    Honeycomb
    Mounting options
    [NM]
    Nipple Mount
    Luminaire body options
    [DPC]
    Double powder coating


    Variants required

    Technical details


    Certificates
    CE, UKCA
    Mounting
    Surface mountable via a stationary base (standard), spike andwall-mountable via a bracket (both optional)
    Tilt angle
    +90°/0°
    Rotation angle
    0°/+355°
    Finishing
    Knurled surface in black anodized aluminum and body in chromate conversion pretreatment followed by electrostatic powder coating
    Fasteners
    Stainless steel (AISI 316L)
    Gasket
    EPDM gasket (Shore A 25-30)
    Lens / Reflector
    PMMA lens with high optical efficiency
    Glass / Diffusor
    Tempered safety glass
    Impact protection
    IK08
    Ingress protection
    IP65
    Insulation class
    Class III
    Weight
    0.64 kg
    LED module
    High efficacy COB LED with long time reliability
    Through wiring
    Single cable entry
    Operating temperature
    -40...50°C
    Cable
    0.2 m of flexible cable

    Accessories (To be ordered separately)

    Extras

    Honeycomb

    [HNY]

    Honeycomb

    Light output

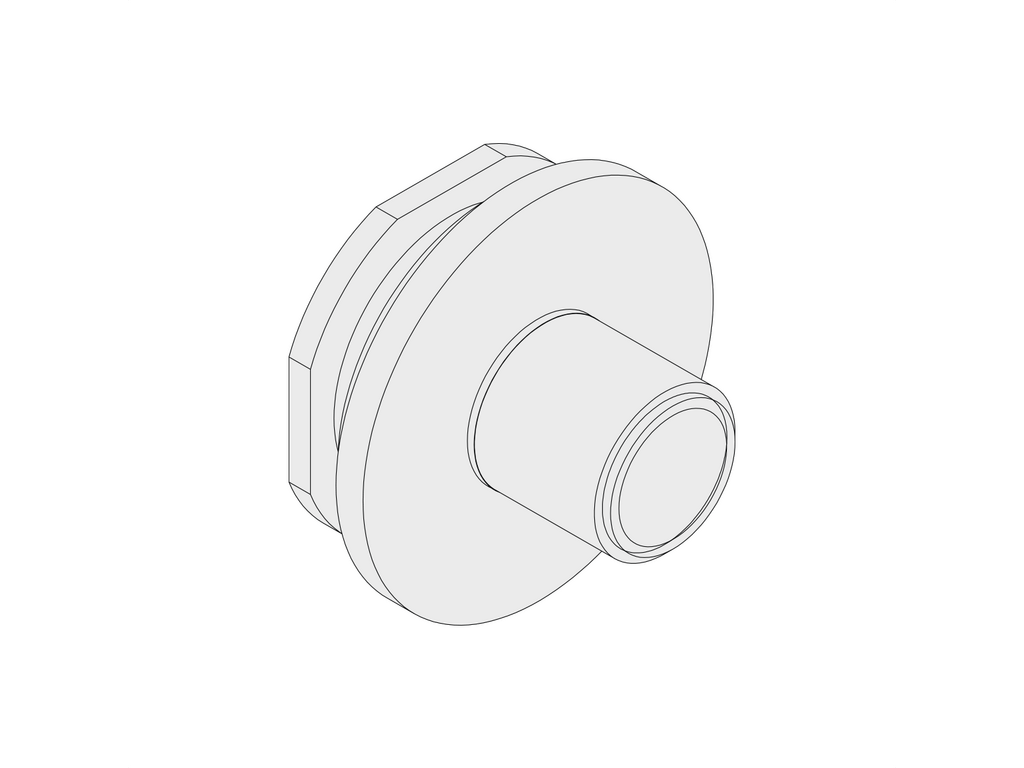

    Nipple Mount

    [NM]

    Nipple Mount

    Mounting options
    Double powder coating

    [DPC]

    Double powder coating

    Luminaire body options

    Related products

    All flux and power values derived following appropriate IES, CIE and applicable standards.
    Descriptions
    Variants

    Light distribution

    Drive current

    Very narrow
    [VN]

    Very narrow

    Narrow
    [N]

    Narrow

    Medium narrow
    [MN]

    Medium narrow

    Medium
    [M]

    Medium

    Drive current

    350 mA
    [350]

    350 mA

    Colour temperature

    2700 K CRI 90
    [927]

    2700 K CRI 90

    3000 K CRI 90
    [930]

    3000 K CRI 90

    4000 K CRI 90
    [940]

    4000 K CRI 90

    Options

    Control

    Product colours

    Product colours

    Black
    [HM1]

    Black

    Dark grey
    [HM2]

    Dark grey

    Anthracite grey
    [HM3]

    Anthracite grey

    Light grey
    [HM4]

    Light grey

    White
    [HM5]

    White

    Bronze
    [HM6]

    Bronze

    Custom colour (Please specify RAL code)
    [CC]

    Custom colour (Please specify RAL code)
