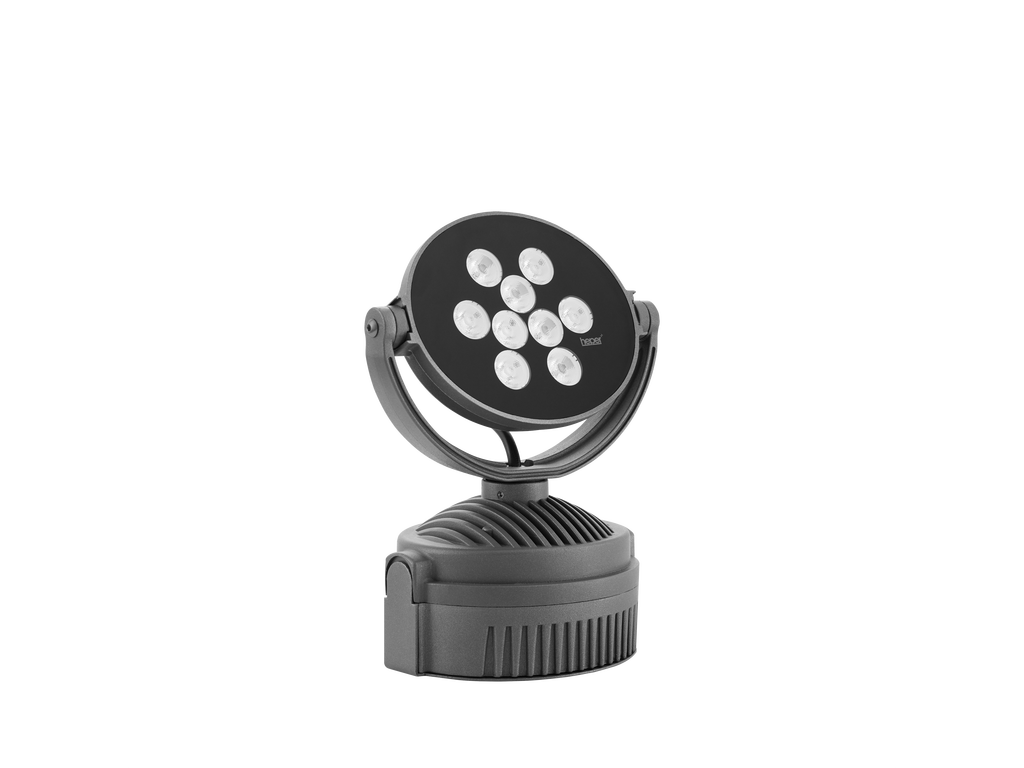

ELIPSO

PHASED-OUT
ELIPSOELIPSO
ELIPSOELIPSO

LF8008.504-EN

CEUKCAIK07IP65Class I
Variants
Light distribution
[M]
Delivered lumens flux
500 - 600 lm
Rated input power
11 W
Colour temperature
3000 K CRI 80, 4000 K CRI 70
Options
Control
On/Off
Product colours
BlackDark greyAnthracite greyLight greyWhiteBronzeCustom colour (Please specify RAL code)
Extras
Consult the factory
120-277V 50/60Hz

Technical details



Certificates
CE, UKCA
Tilt angle
+15°/-15°
Housing
Corrosion resistant, die-cast, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Silicone rubber
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK07
Ingress protection
IP65
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
3.15 kg
LED module
High power LEDs on metal-core PCB
Driver
Internal LED driver
Driver surge protection
1/1 kV
Power factor
> 0.90
Through wiring
Single cable entry
Cable
0.4 m of flexible cable

Downloads


Variants


Light distribution
Medium
[M] Medium
Delivered lumens flux
500 lm
600 lm
Rated input power
11 W
Colour temperature
3000 K CRI 80
4000 K CRI 70

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LF8008.504-EN-M-350-740
Light distribution: [M] Medium
Delivered lumens flux: 600 lm
Rated input power: 11 W
Colour temperature: 4000 K CRI 70
Control: On/Off
Light distribution
[M]
Delivered lumens flux
600 lm
Rated input power
11 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
55 lm/W
Lamp
9 LED
MacAdam Ellipse
3 SDCM
Variant code: LF8008.504-EN-M-350-830
Light distribution: [M] Medium
Delivered lumens flux: 500 lm
Rated input power: 11 W
Colour temperature: 3000 K CRI 80
Control: On/Off
Light distribution
[M]
Delivered lumens flux
500 lm
Rated input power
11 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
45 lm/W
Lamp
9 LED
MacAdam Ellipse
3 SDCM

Extras


120-277V 50/60Hz

[UNI]

120-277V 50/60Hz

Consult the factory
All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Medium
[M]

Medium

Drive current


350 mA
[350]

350 mA

Colour temperature


3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

Product colours


Black
[HM1]

Black

Dark grey
[HM2]

Dark grey

Anthracite grey
[HM3]

Anthracite grey

Light grey
[HM4]

Light grey

White
[HM5]

White

Bronze
[HM6]

Bronze

Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)
