C-LIGHT AFX 4 Module

NEW
C-LIGHT AFX 4 ModuleC-LIGHT AFX 4 Module
C-LIGHT AFX 4 ModuleC-LIGHT AFX 4 Module

LC2029.864-EN

CEUKCAIK08IP66Class I
Variants
Light distribution
[T5] , [T5] 117°
Delivered lumens flux
6570 - 18085 lm
Rated input power
68 - 135 W
Colour temperature
2200 K CRI 80, 2700 K CRI 80, 3000 K CRI 80, 4000 K CRI 70, 4000 K CRI 80
BUG rating
B3-U0-G1, B4-U1-G1, B4-U0-G1, B3-U0-G0
Lifetime L90B50 (hour)
>102, 000
Lifetime L80B50 (hour)
>102, 000
Options
Control
On/Off, DALI
Product colours
Anthracite greyLight greyCustom colour (Please specify RAL code)
Extras
Consult the factory
Class II, 120-277V 50/60Hz
Luminaire body options
Double powder coating

Technical details



Certificates
CE, UKCA

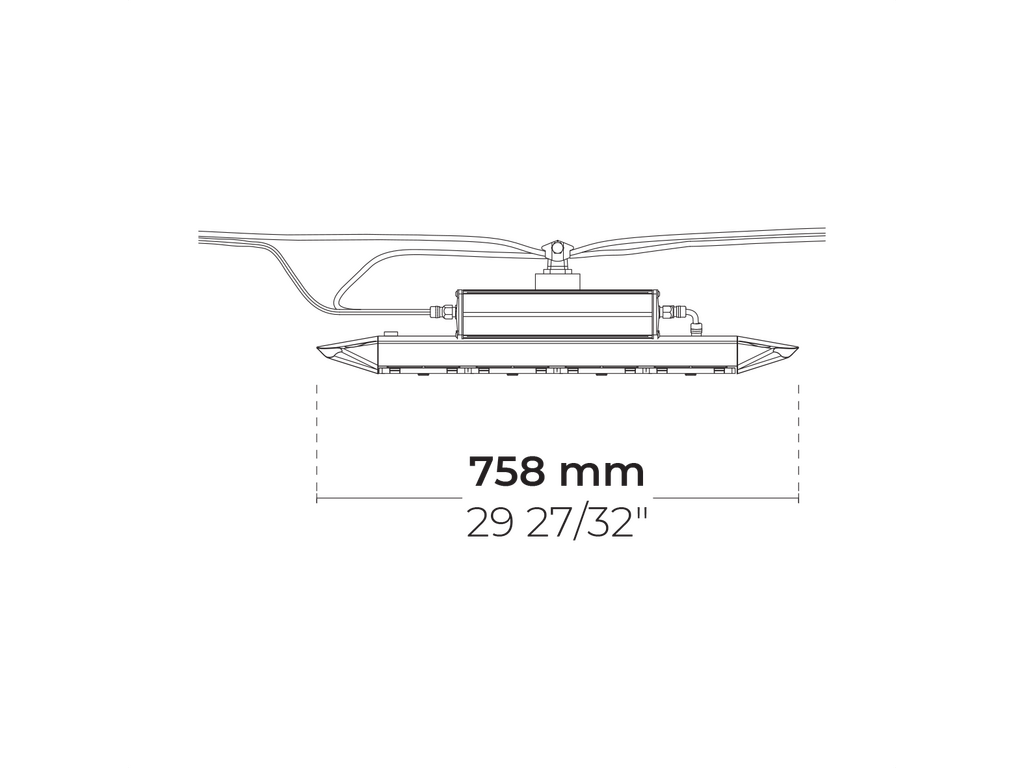

Mounting
Catenary wire mounting
Housing
Corrosion resistant, die-cast, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Liquid silicone
Lens / Reflector
PMMA lens with high optical efficiency
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP66
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
8.8 kg
LED module
High power LEDs on metal-core PCB
Driver
Internal LED driver
Driver surge protection
10/6 kV
Power factor
> 0.95
Through wiring
Single cable entry
Operating temperature
-40...50°C
Cable
0.5 m of flexible cable
Packing box dimensions
80*20*25 cm
Notes
This product can be supplied with Insulation class (Class II) upon request. Please contact factory.

Downloads


Variants


Light distribution
Type V, Symmetric
[T5] Type V, Symmetric
Type V, Symmetric
[T5] Type V, Symmetric - 117°
Delivered lumens flux
6570 lm
8230 lm
9170 lm
9375 lm
11815 lm
11830 lm
13940 lm
15290 lm
18085 lm
Rated input power
68 W
97 W
135 W
Colour temperature
2200 K CRI 80
2700 K CRI 80
3000 K CRI 80
4000 K CRI 70
4000 K CRI 80

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LC2029.864-EN-T5-350-822
Light distribution: [T5] Type V, Symmetric
Delivered lumens flux: 6570 lm
Rated input power: 68 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI
Light distribution
[T5]
Delivered lumens flux
6570 lm
Rated input power
68 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
97 lm/W
Lamp
64 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LC2029.864-EN-T5-500-822
Light distribution: [T5] Type V, Symmetric
Delivered lumens flux: 9170 lm
Rated input power: 97 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI
Light distribution
[T5]
Delivered lumens flux
9170 lm
Rated input power
97 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
95 lm/W
Lamp
64 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LC2029.864-EN-T5-700-822
Light distribution: [T5] Type V, Symmetric
Delivered lumens flux: 11830 lm
Rated input power: 135 W
Colour temperature: 2200 K CRI 80
Control: On/Off, DALI
Light distribution
[T5]
Delivered lumens flux
11830 lm
Rated input power
135 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
88 lm/W
Lamp
64 LED
MacAdam Ellipse
3 SDCM
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LC2029.864-EN-T5-350-740
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 9375 lm
Rated input power: 68 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LC2029.864-EN-T5-350-740
Light distribution
[T5] 117°
Delivered lumens flux
9375 lm
Rated input power
68 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
138 lm/W
Lamp
64 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LC2029.864-EN-T5-350-827
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 8230 lm
Rated input power: 68 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LC2029.864-EN-T5-350-827
Light distribution
[T5] 117°
Delivered lumens flux
8230 lm
Rated input power
68 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
121 lm/W
Lamp
64 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LC2029.864-EN-T5-350-830
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 8230 lm
Rated input power: 68 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LC2029.864-EN-T5-350-830
Light distribution
[T5] 117°
Delivered lumens flux
8230 lm
Rated input power
68 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
121 lm/W
Lamp
64 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LC2029.864-EN-T5-350-840
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 8230 lm
Rated input power: 68 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
LC2029.864-EN-T5-350-840
Light distribution
[T5] 117°
Delivered lumens flux
8230 lm
Rated input power
68 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
121 lm/W
Lamp
64 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G0
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LC2029.864-EN-T5-500-740
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 13940 lm
Rated input power: 97 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LC2029.864-EN-T5-500-740
Light distribution
[T5] 117°
Delivered lumens flux
13940 lm
Rated input power
97 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
139 lm/W
Lamp
64 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LC2029.864-EN-T5-500-827
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 11815 lm
Rated input power: 97 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LC2029.864-EN-T5-500-827
Light distribution
[T5] 117°
Delivered lumens flux
11815 lm
Rated input power
97 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
118 lm/W
Lamp
64 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LC2029.864-EN-T5-500-830
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 11815 lm
Rated input power: 97 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LC2029.864-EN-T5-500-830
Light distribution
[T5] 117°
Delivered lumens flux
11815 lm
Rated input power
97 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
118 lm/W
Lamp
64 LED
MacAdam Ellipse
3 SDCM
BUG rating
B3-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LC2029.864-EN-T5-500-840
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 11815 lm
Rated input power: 97 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
LC2029.864-EN-T5-500-840
Light distribution
[T5] 117°
Delivered lumens flux
11815 lm
Rated input power
97 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
118 lm/W
Lamp
64 LED
MacAdam Ellipse
4 SDCM
BUG rating
B3-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LC2029.864-EN-T5-700-740
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 18085 lm
Rated input power: 135 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
LC2029.864-EN-T5-700-740
Light distribution
[T5] 117°
Delivered lumens flux
18085 lm
Rated input power
135 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
130 lm/W
Lamp
64 LED
MacAdam Ellipse
4 SDCM
BUG rating
B4-U1-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LC2029.864-EN-T5-700-827
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 15290 lm
Rated input power: 135 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
LC2029.864-EN-T5-700-827
Light distribution
[T5] 117°
Delivered lumens flux
15290 lm
Rated input power
135 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
109 lm/W
Lamp
64 LED
MacAdam Ellipse
3 SDCM
BUG rating
B4-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LC2029.864-EN-T5-700-830
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 15290 lm
Rated input power: 135 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
LC2029.864-EN-T5-700-830
Light distribution
[T5] 117°
Delivered lumens flux
15290 lm
Rated input power
135 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
109 lm/W
Lamp
64 LED
MacAdam Ellipse
3 SDCM
BUG rating
B4-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000
Variant code: LC2029.864-EN-T5-700-840
Light distribution: [T5] Type V, Symmetric - 117°
Delivered lumens flux: 15290 lm
Rated input power: 135 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
LC2029.864-EN-T5-700-840
Light distribution
[T5] 117°
Delivered lumens flux
15290 lm
Rated input power
135 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
109 lm/W
Lamp
64 LED
MacAdam Ellipse
4 SDCM
BUG rating
B4-U0-G1
Lifetime L90B50 (hour)
>102,000
Lifetime L80B50 (hour)
>102,000

Extras


Class II

[C2]

Class II

Consult the factory
120-277V 50/60Hz

[UNI]

120-277V 50/60Hz

Consult the factory
Double powder coating

[DPC]

Double powder coating

Luminaire body options

All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Type V, Symmetric
[T5]

Type V, Symmetric

Drive current


350 mA
[350]

350 mA

500 mA
[500]

500 mA

700 mA
[700]

700 mA

Colour temperature


2200 K CRI 80
[822]

2200 K CRI 80

2700 K CRI 80
[827]

2700 K CRI 80

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

4000 K CRI 80
[840]

4000 K CRI 80

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

DALI
[DALI]

DALI

Product colours


Anthracite grey
[HM3]

Anthracite grey

Light grey
[HM4]

Light grey

Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)
