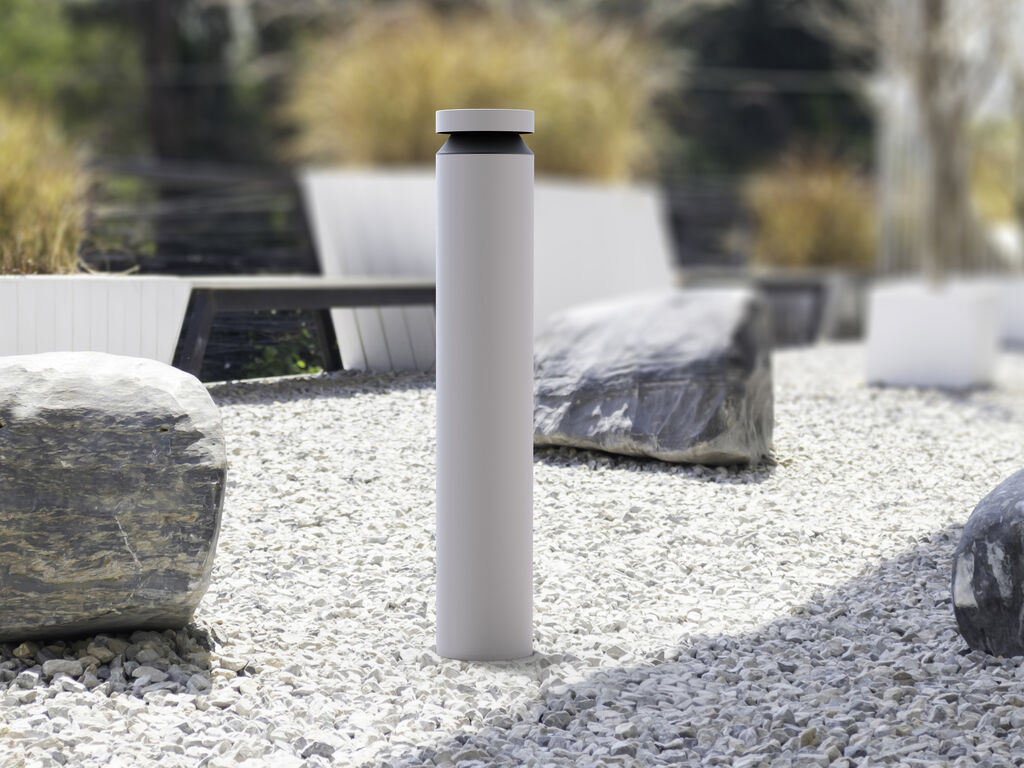

CORVUS L

Name: CORVUS L
Brand: HEPER
SKU: LB6075.556-EN
Availability: InStock

NEW

LB6075.556-EN

Downloads

Photometry files (IES)

0.12 MB ZIP

Photometry files (LDT)

0.09 MB ZIP

Technical drawing

0.06 MB PDF

Technical drawing (Image)

Light distribution

[SYM] 139°

Luminaire luminous flux

1011 - 1067 lm

Rated input power

27 W

CCT

2700K, 3000K, 4000K

CRI

Ra80

Control

On/Off, DALI

Product colours

Height

50cm, 1m, Custom height (Please specify)

Extras

Light output

Constant light output

Consult the factory

120-277V 50/60Hz

Luminaire body options

Double powder coating

Luminaire efficacy

37 - 40 lm/W

Colour deviation

3 SDCM

Lifetime L90B50 (hour)

>102 000

Housing

Marine grade aluminum housing

Driver

Integral LED driver

Input voltage

220-240V 50/60Hz

Notes

For specifications with Turtle Friendly options and photometry files, please contact the factory.

Configurator

Project name

Type

Quantity

Date

Note

Variant order code

LB6075.556-EN-SYM-700-_-_-EN-C1-_-_-_-_-___

Variants required

Variants

Light distribution

[SYM]
Symmetric
139°

Rated input power

[700]
27 W

Colour temperature

[827]
2700 K CRI 80

[830]
3000 K CRI 80

[840]
4000 K CRI 80

Options

Control

[ONOFF]
On/Off

[DALI]
DALI

Product colours

[HM1]

Black

[HM2]

Dark grey

[HM3]

Anthracite grey

[HM4]

Light grey

[HM5]

White

[HM6]

Bronze

[CC]

Custom colour (Please specify RAL code)

Height

[H00.50]
50cm

[H01]
1m

[HC]
Custom height (Please specify)

Extras

Light output

[CLO]
Constant light output

Consult the factory

[UNI]
120-277V 50/60Hz

Luminaire body options

[DPC]
Double powder coating

Variants required

Technical details

Certificates

CE, UKCA, Turtle Friendly

Mounting

Surface mountable

Finishing

Chromate conversion pretreatment followed by electrostatic powder coating

Fasteners

Stainless steel (AISI 304 / EN 1.4301 grade)

Gasket

Silicone

Glass / Diffusor

Tempered safety glass

Impact protection

IK08

Ingress protection

IP65

Insulation class

Class I

Weight

10 kg(1m) , 6.8 kg(0.5m)

LED module

Mid power LEDs on metal-core PCB

Driver surge protection

3/3 kV

Power factor

> 0.90

Through wiring

Single cable entry

Operating temperature

-40....50°C

Cable

0.5 m of flexible cable

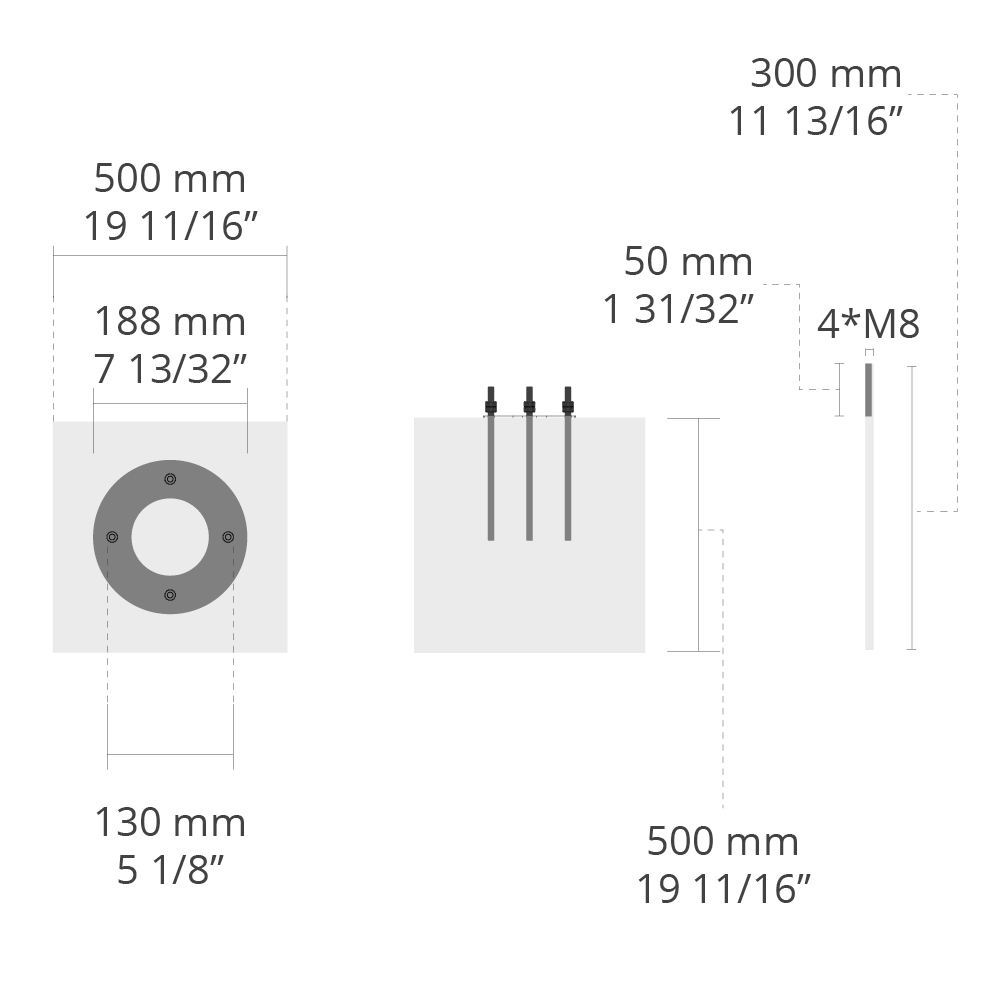

Accessories (To be ordered separately)

Anchorages

623J015

Technical drawing

0.13 MB JPG

Extras

[CLO]

Constant light output

Light output

[UNI]

120-277V 50/60Hz

Consult the factory

[DPC]

Double powder coating

Luminaire body options

All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions

Variants

Light distribution

Drive current

[SYM]

Symmetric

Drive current

[700]

700 mA

Colour temperature

[827]

2700 K CRI 80

[830]

3000 K CRI 80

[840]

4000 K CRI 80

Options

Control

Product colours

[ONOFF]

On/Off

[DALI]

DALI

Product colours

[HM1]

Black

[HM2]

Dark grey

[HM3]

Anthracite grey

[HM4]

Light grey

[HM5]

White

[HM6]

Bronze

[CC]

Custom colour (Please specify RAL code)
