CORVUS S Asym

Name: CORVUS S Asym
Brand: HEPER
SKU: LB6074.565-EN
Availability: InStock

UPCOMING

LB6074.565-EN

Downloads

Photometry files (IES)

0.12 MB ZIP

Photometry files (LDT)

0.09 MB ZIP

Technical drawing

0.06 MB PDF

Technical drawing (Image)

0.08 MB PNG

Certificate files

1.12 MB ZIP

Light distribution

[ASYM] 113x42°

Luminaire luminous flux

355 - 396 lm

Rated input power

11 W

CCT

2700K, 3000K, 4000K

CRI

Ra80

Control

On/Off, DALI

Product colours

Height

50cm, 1m, Custom height (Please specify)

Extras

Light output

Constant light output, Turtle Friendly

Consult the factory

120-277V 50/60Hz

Luminaire body options

Double powder coating

Luminaire efficacy

32 - 36 lm/W

Colour deviation

3 SDCM

Lifetime L90B50 (hour)

>102 000

Housing

Marine grade aluminum housing

Driver

Integral LED driver

Input voltage

220-240V 50/60Hz

Notes

For specifications with Turtle Friendly options and photometry files, please contact the factory.

Configurator

Project name

Type

Quantity

Date

Note

Variant order code

LB6074.565-EN-ASYM-550-_-_-EN-C1-_-_-_-_-___

Variants

Light distribution

[ASYM]
Asymmetric
113x42°

Rated input power

[550]
11 W

Colour temperature

[827]
2700 K CRI 80

[830]
3000 K CRI 80

[840]
4000 K CRI 80

Options

Control

[ONOFF]
On/Off

[DALI]
DALI

Product colours

[HM1]

Black

[HM2]

Dark grey

[HM3]

Anthracite grey

[HM4]

Light grey

[HM5]

White

[HM6]

Bronze

[CC]

Custom colour (Please specify RAL code)

Height

[H00.50]

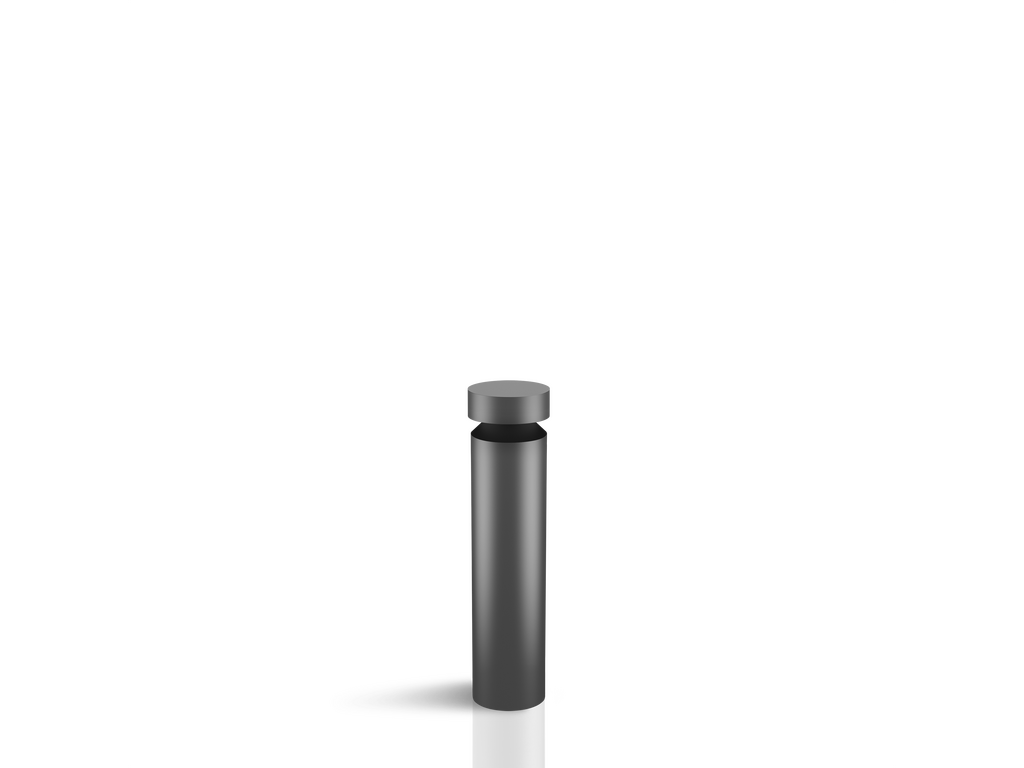

50cm

[H01]

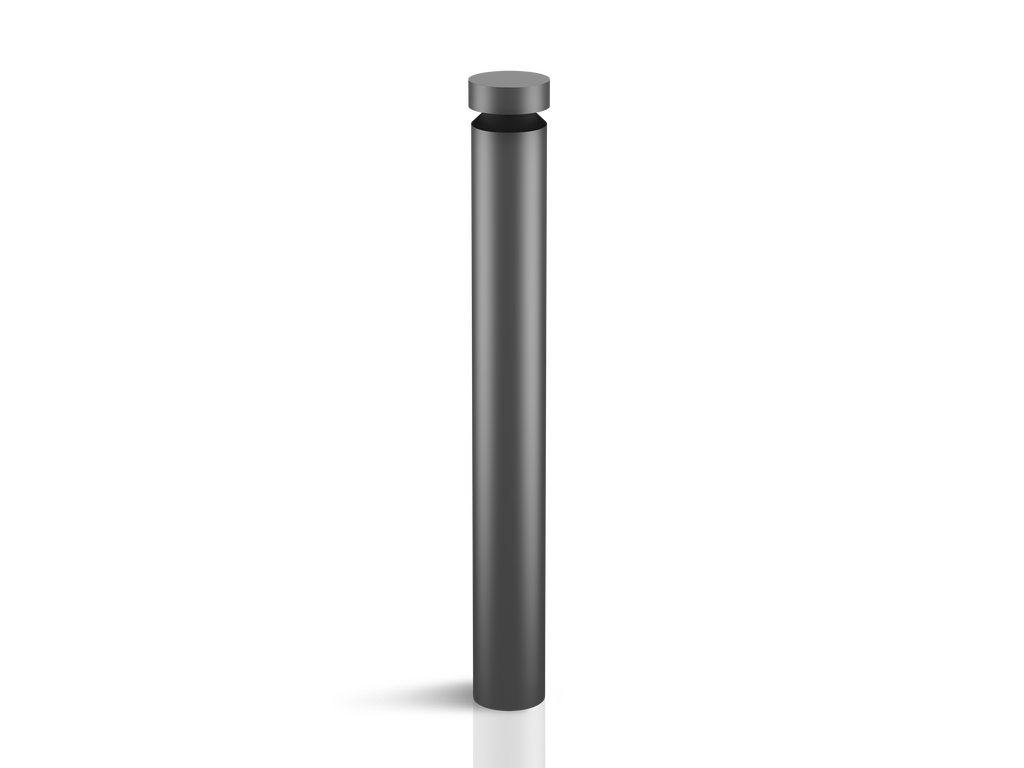

1m

[HC]
Custom height (Please specify)

Extras

Light output

[CLO]
Constant light output

[TF]
Turtle Friendly

Consult the factory

[UNI]
120-277V 50/60Hz

Luminaire body options

[DPC]
Double powder coating

Technical details

Certificates

CE, UKCA

Mounting

Surface mountable

Finishing

Chromate conversion pretreatment followed by electrostatic powder coating

Fasteners

Stainless steel (AISI 304 / EN 1.4301 grade)

Gasket

Silicone

Glass / Diffusor

Tempered safety glass

Impact protection

IK08

Ingress protection

IP65

Insulation class

Class I

LED module

Mid power LEDs on metal-core PCB

Driver surge protection

3/3 kV

Power factor

> 0.90

Through wiring

Single cable entry

Operating temperature

-40...50°C

Cable

0.5 m of flexible cable

Extras

[CLO]

Constant light output

Light output

[TF]

Turtle Friendly

Light output

[UNI]

120-277V 50/60Hz

Consult the factory

[DPC]

Double powder coating

Luminaire body options

All flux and power values derived following appropriate IES, CIE and applicable standards.
