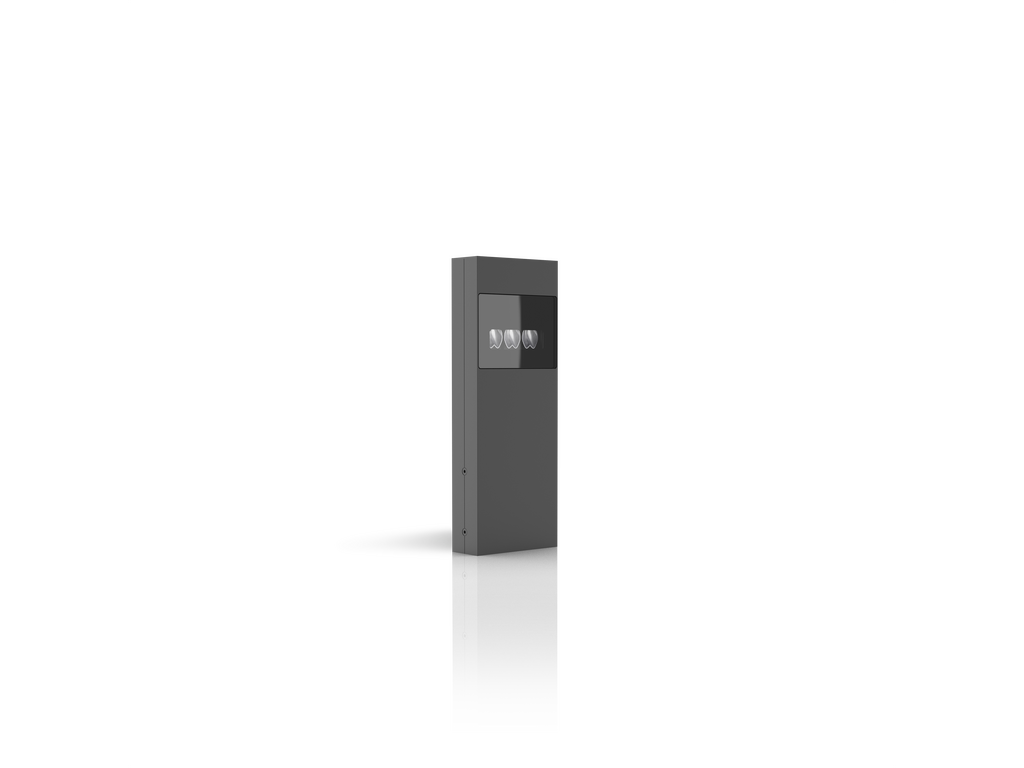

VERTEX 1 Module

VERTEX 1 ModuleVERTEX 1 ModuleVERTEX 1 Module
VERTEX 1 ModuleVERTEX 1 ModuleVERTEX 1 Module

LB6064.591-EN

CEUKCAIK08IP66Class I
Variants
Light distribution
[SLFB] 144x41°
Delivered lumens flux
363 - 473 lm
Rated input power
8 W
Colour temperature
2200 K CRI 80, 2700 K CRI 80, 3000 K CRI 80, 4000 K CRI 70, 4000 K CRI 80
BUG rating
B0-U1-G0
Lifetime L90B50 (hour)
>60, 000
Lifetime L80B50 (hour)
>60, 000
Options
Control
On/Off, DALI *
Product colours
BlackDark greyAnthracite greyLight greyWhiteBronzeCustom colour (Please specify RAL code)Wooden

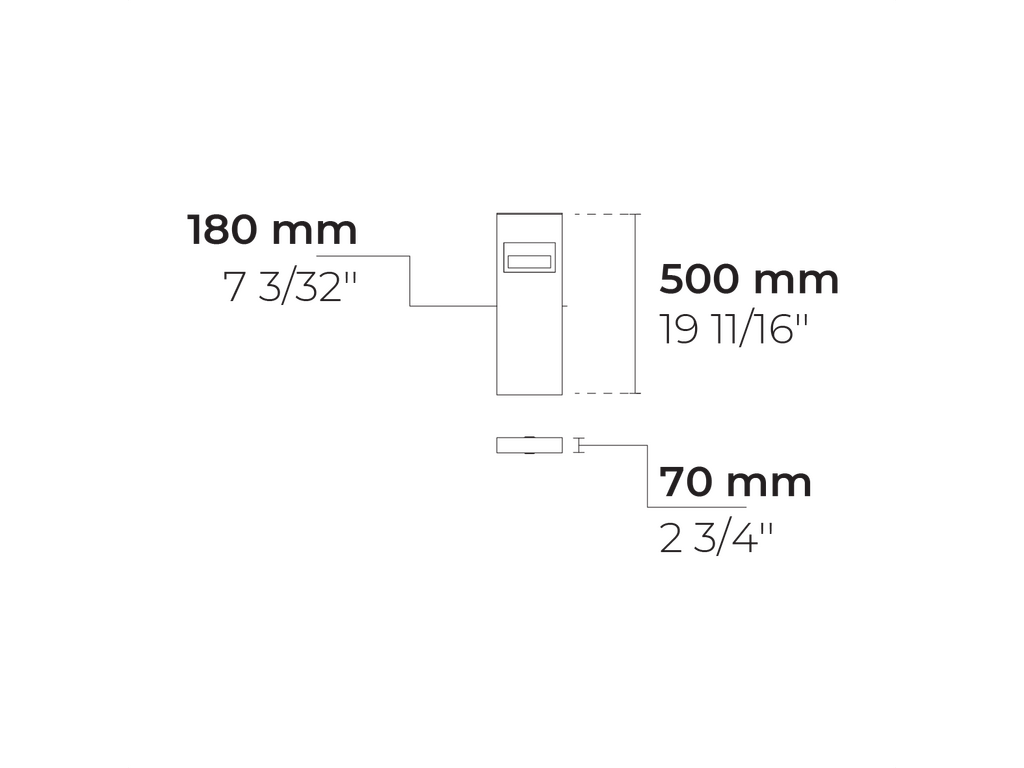

Height
50cm
Extras
Luminaire body options
Double powder coating
* Please check the specific variant for each control type.

Technical details



Certificates
CE, UKCA
Mounting
Surface mountable
Housing
Corrosion resistant, extruded, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Gasket
Liquid silicone
Lens / Reflector
High reflectance aluminium coating, multifaceted micro reflector
Glass / Diffusor
Tempered safety glass
Impact protection
IK08
Ingress protection
IP66
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
4.51 kg
LED module
Multi-chip high power LEDs on metal-core PCB
Driver
Integral LED driver
Driver surge protection
1/1 kV
Power factor
> 0.90
Through wiring
Single cable entry
Operating temperature
-25...50°C
Cable
0.5 m of flexible cable

Downloads


Variants


Light distribution
Special linear, Forward throw
[SLFB] Special linear, Forward throw - 144x41°
Delivered lumens flux
363 lm
423 lm
430 lm
450 lm
473 lm
Rated input power
8 W
Colour temperature
2200 K CRI 80
2700 K CRI 80
3000 K CRI 80
4000 K CRI 70
4000 K CRI 80

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LB6064.591-EN-SLFB-350-740
Light distribution: [SLFB] Special linear, Forward throw - 144x41°
Delivered lumens flux: 473 lm
Rated input power: 8 W
Colour temperature: 4000 K CRI 70
Control: On/Off, DALI
Light distribution
[SLFB] 144x41°
Delivered lumens flux
473 lm
Rated input power
8 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
59 lm/W
Lamp
6 LED
MacAdam Ellipse
3 SDCM
BUG rating
B0-U1-G0
Lifetime L90B50 (hour)
>60,000
Lifetime L80B50 (hour)
>60,000
Variant code: LB6064.591-EN-SLFB-350-822
Light distribution: [SLFB] Special linear, Forward throw - 144x41°
Delivered lumens flux: 363 lm
Rated input power: 8 W
Colour temperature: 2200 K CRI 80
Control: On/Off
Light distribution
[SLFB] 144x41°
Delivered lumens flux
363 lm
Rated input power
8 W
Colour temperature
2200 K CRI 80
Luminaire efficacy
45 lm/W
Lamp
6 LED
MacAdam Ellipse
3 SDCM
BUG rating
B0-U1-G0
Lifetime L90B50 (hour)
>60,000
Lifetime L80B50 (hour)
>60,000
Variant code: LB6064.591-EN-SLFB-350-827
Light distribution: [SLFB] Special linear, Forward throw - 144x41°
Delivered lumens flux: 423 lm
Rated input power: 8 W
Colour temperature: 2700 K CRI 80
Control: On/Off, DALI
Light distribution
[SLFB] 144x41°
Delivered lumens flux
423 lm
Rated input power
8 W
Colour temperature
2700 K CRI 80
Luminaire efficacy
52 lm/W
Lamp
6 LED
MacAdam Ellipse
3 SDCM
BUG rating
B0-U1-G0
Lifetime L90B50 (hour)
>60,000
Lifetime L80B50 (hour)
>60,000
Variant code: LB6064.591-EN-SLFB-350-830
Light distribution: [SLFB] Special linear, Forward throw - 144x41°
Delivered lumens flux: 430 lm
Rated input power: 8 W
Colour temperature: 3000 K CRI 80
Control: On/Off, DALI
Light distribution
[SLFB] 144x41°
Delivered lumens flux
430 lm
Rated input power
8 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
53 lm/W
Lamp
6 LED
MacAdam Ellipse
3 SDCM
BUG rating
B0-U1-G0
Lifetime L90B50 (hour)
>60,000
Lifetime L80B50 (hour)
>60,000
Variant code: LB6064.591-EN-SLFB-350-840
Light distribution: [SLFB] Special linear, Forward throw - 144x41°
Delivered lumens flux: 450 lm
Rated input power: 8 W
Colour temperature: 4000 K CRI 80
Control: On/Off, DALI
Light distribution
[SLFB] 144x41°
Delivered lumens flux
450 lm
Rated input power
8 W
Colour temperature
4000 K CRI 80
Luminaire efficacy
56 lm/W
Lamp
6 LED
MacAdam Ellipse
3 SDCM
BUG rating
B0-U1-G0
Lifetime L90B50 (hour)
>60,000
Lifetime L80B50 (hour)
>60,000

Accessories (To be ordered separately)


Accessories (To be ordered separately)


Extras


Double powder coating

[DPC]

Double powder coating

Luminaire body options

All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Special linear, Forward throw
[SLFB]

Special linear, Forward throw

Drive current


350 mA
[350]

350 mA

Colour temperature


2200 K CRI 80
[822]

2200 K CRI 80

2700 K CRI 80
[827]

2700 K CRI 80

3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

4000 K CRI 80
[840]

4000 K CRI 80

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

DALI
[DALI]

DALI

Product colours


Black
[HM1]

Black

Dark grey
[HM2]

Dark grey

Anthracite grey
[HM3]

Anthracite grey

Light grey
[HM4]

Light grey

White
[HM5]

White

Bronze
[HM6]

Bronze

Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)

Wooden
[WD]

Wooden
