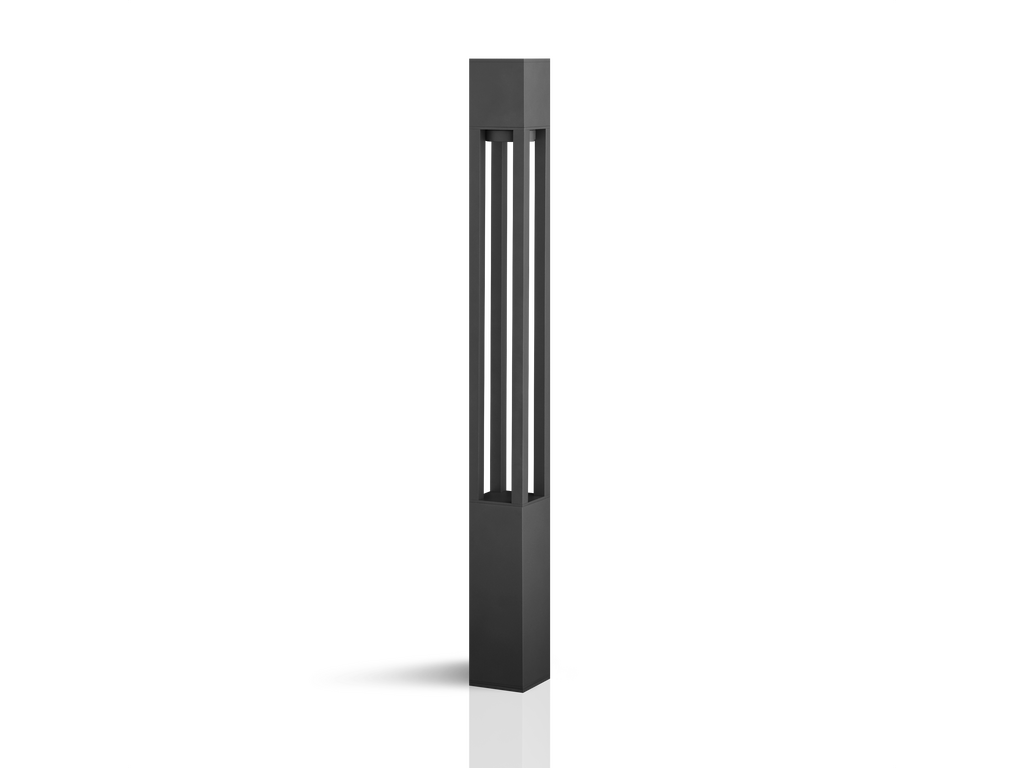

NORMA S

QUICK-SHIP
NORMA SNORMA S
NORMA SNORMA S

LB6054.006-EN

CEIK05IP65Class I
Variants
Light distribution
[SYM-4L] 360° x 20°
Nominal LED lumens flux
435 - 455 lm
Nominal LED power
7.5 W
Rated luminaire lumens flux
189 - 202 lm
Rated luminaire power
7.5 W
Colour temperature
4000K CRI 90, 3000K CRI 90
BUG rating
B0-U1-G0
Options
Control
On/Off
Input voltage
220-240V 50/60Hz, 120-277V 50/60Hz
Insulation class
Class I
Product colours
Black (Textured)Dark grey (Textured)Anthracite grey (Textured)Light grey (Textured)White (Textured)Bronze (Textured)Custom Colour (Please specify RAL code)
Extras
Finishing options
Double coating

Housing
Corrosion resistant extruded aluminum housing
Finishing
Electrostatic powder coating
Fasteners
Stainless steel (grade 304)
Gasket
Liquid silicone
Glass / Diffusor
Tempered safety glass
Impact protection
IK05
Ingress protection
IP65
Weight
3.5 kg
Driver
Internal LED driver
Power factor
> 0.80
Through wiring
Single cable entry
Cable
0.5 m of flexible cable
Notes
QUICK-SHIP: Some variants will be delivered faster. On/Off, 220-240V 50/60Hz, Class I, HM3 Anthracite grey (Textured)

Downloads


Variants


Light distribution
Symmetric, 360°, Special effect: 4 lines
[SYM-4L] Symmetric, 360°, Special effect: 4 lines - 360° x 20°
Nominal LED lumens flux
455 lm
435 lm
Nominal LED power
7.5 W
Colour temperature
4000K CRI 90
3000K CRI 90

Variant code

Variant name

Optic

Nominal LED lumens flux




Variant code: LB6054.006-EN-SYM-4L-930
Variant name: LAMP 1 - 7.5W - 3000K CRI 90
Optic: [SYM-4L] Symmetric, 360°, Special effect: 4 lines - 360° x 20°
Nominal LED lumens flux: 435 lm
QUICK-SHIP
LB6054.006-EN-SYM-4L-930
Nominal LED lumens flux
435 lm
Nominal LED power
7.5 W
Rated luminaire lumens flux
189 lm
Rated luminaire power
7.5 W
Luminaire efficacy
25 lm/W
Lamp
1 LAMP
MacAdam Ellipse
3 SDCM
BUG rating
B0-U1-G0
Variant code: LB6054.006-EN-SYM-4L-940
Variant name: LAMP 1 - 7.5W - 4000K CRI 90
Optic: [SYM-4L] Symmetric, 360°, Special effect: 4 lines - 360° x 20°
Nominal LED lumens flux: 455 lm
LB6054.006-EN-SYM-4L-940
Nominal LED lumens flux
455 lm
Nominal LED power
7.5 W
Rated luminaire lumens flux
202 lm
Rated luminaire power
7.5 W
Luminaire efficacy
27 lm/W
Lamp
1 LAMP
MacAdam Ellipse
3 SDCM
BUG rating
B0-U1-G0
All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Symmetric, 360°, Special effect: 4 lines
[SYM-4L]

Symmetric, 360°, Special effect: 4 lines

Drive current


Colour temperature


3000K CRI 90
[930]

3000K CRI 90

4000K CRI 90
[940]

4000K CRI 90

Options

Control

Input voltage


On/Off
[ONOFF]

On/Off

Input voltage


220-240V 50/60Hz
[EN]

220-240V 50/60Hz

120-277V 50/60Hz
[UNI]

120-277V 50/60Hz

Insulation class

Product colours


Class I
[C1]

Class I

Product colours


Black (Textured)
[HM1]

Black (Textured)

Dark grey (Textured)
[HM2]

Dark grey (Textured)

Anthracite grey (Textured)
[HM3]

Anthracite grey (Textured)

Light grey (Textured)
[HM4]

Light grey (Textured)

White (Textured)
[HM5]

White (Textured)

Bronze (Textured)
[HM6]

Bronze (Textured)

Custom Colour (Please specify RAL code)
[CC]

Custom Colour (Please specify RAL code)

Extras

Finishing options


Double coating
[DC]

Double coating
