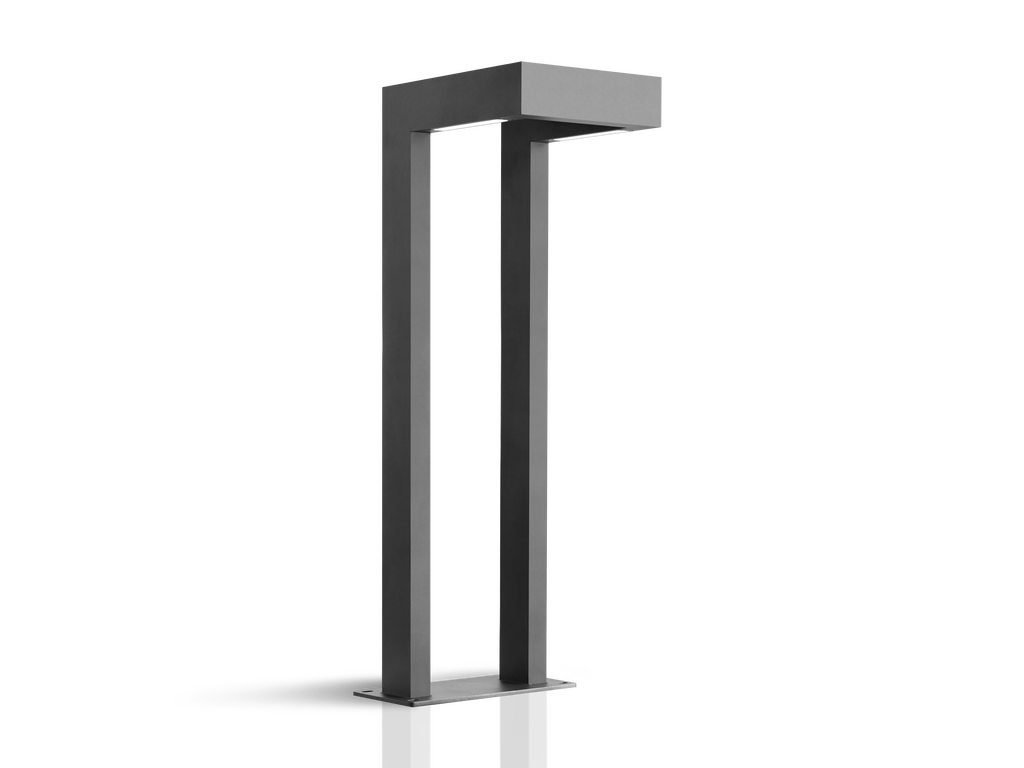

LENA

PHASED-OUT
LENALENA
LENALENA

LB6049.563-EN

CEUKCAIK05IP65Class I
Variants
Light distribution
[SYM] 360°
Delivered lumens flux
850 - 1000 lm
Rated input power
15 W
Colour temperature
3000 K CRI 80, 4000 K CRI 70
BUG rating
B1-U0-G0
Lifetime L90B10 (hour)
>102, 000
Lifetime L90B50 (hour)
>102, 000
Options
Control
On/Off
Product colours
BlackDark greyAnthracite greyLight greyWhiteBronzeCustom colour (Please specify RAL code)
Extras
Consult the factory
120-277V 50/60Hz
Luminaire body options
Double powder coating

Technical details



Certificates
CE, UKCA
Housing
Corrosion resistant, extruded, marine grade aluminum housing
Finishing
Chromate conversion pretreatment followed by electrostatic powder coating
Fasteners
Stainless steel (AISI 304 / EN 1.4301 grade)
Glass / Diffusor
UV stable, bio-based polycarbonate diffusor
Impact protection
IK05
Ingress protection
IP65
Input voltage
220-240V 50/60Hz
Insulation class
Class I
Weight
7.11 kg
LED module
High power LEDs on metal-core PCB
Driver
Integral LED driver
Driver surge protection
1/1 kV
Power factor
> 0.90
Through wiring
Single cable entry
Operating temperature
-30...50°C

Downloads


Variants


Light distribution
Symmetric
[SYM] Symmetric - 360°
Delivered lumens flux
850 lm
1000 lm
Rated input power
15 W
Colour temperature
3000 K CRI 80
4000 K CRI 70

Variant code

Light distribution

Delivered lumens flux

Rated input power

Colour temperature

Control


Variant code: LB6049.563-EN-SYM-350-740
Light distribution: [SYM] Symmetric - 360°
Delivered lumens flux: 1000 lm
Rated input power: 15 W
Colour temperature: 4000 K CRI 70
Control: On/Off
Light distribution
[SYM] 360°
Delivered lumens flux
1000 lm
Rated input power
15 W
Colour temperature
4000 K CRI 70
Luminaire efficacy
67 lm/W
Lamp
12 LED
MacAdam Ellipse
5 SDCM
BUG rating
B1-U0-G0
Lifetime L90B10 (hour)
>102,000
Lifetime L90B50 (hour)
>102,000
Variant code: LB6049.563-EN-SYM-350-830
Light distribution: [SYM] Symmetric - 360°
Delivered lumens flux: 850 lm
Rated input power: 15 W
Colour temperature: 3000 K CRI 80
Control: On/Off
Light distribution
[SYM] 360°
Delivered lumens flux
850 lm
Rated input power
15 W
Colour temperature
3000 K CRI 80
Luminaire efficacy
57 lm/W
Lamp
12 LED
MacAdam Ellipse
5 SDCM
BUG rating
B1-U0-G0
Lifetime L90B10 (hour)
>102,000
Lifetime L90B50 (hour)
>102,000

Accessories (To be ordered separately)


Accessories (To be ordered separately)


Extras


120-277V 50/60Hz

[UNI]

120-277V 50/60Hz

Consult the factory
Double powder coating

[DPC]

Double powder coating

Luminaire body options
All flux and power values derived following appropriate IES, CIE and applicable standards.

Descriptions
Variants

Light distribution

Drive current


Symmetric
[SYM]

Symmetric

Drive current


350 mA
[350]

350 mA

Colour temperature


3000 K CRI 80
[830]

3000 K CRI 80

4000 K CRI 70
[740]

4000 K CRI 70

Options

Control

Product colours


On/Off
[ONOFF]

On/Off

Product colours


Black
[HM1]

Black

Dark grey
[HM2]

Dark grey

Anthracite grey
[HM3]

Anthracite grey

Light grey
[HM4]

Light grey

White
[HM5]

White

Bronze
[HM6]

Bronze

Custom colour (Please specify RAL code)
[CC]

Custom colour (Please specify RAL code)
