    ORION

    PHASED-OUT
    ORIONORION
    ORIONORION

    LB6011.513-EN

    CEUKCAIK08IP65Class I
    Variants

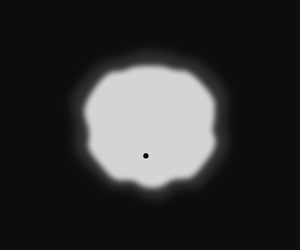

    Light distribution
    [SYM-4L] 360°
    Delivered lumens flux
    1473 - 1551 lm
    Rated input power
    20 W
    Colour temperature
    3000 K CRI 80, 4000 K CRI 70
    BUG rating
    B1-U0-G1
    Lifetime L90B50 (hour)
    >145, 000
    Lifetime L80B50 (hour)
    >145, 000
    Options
    Control
    On/Off
    Product colours
    BlackDark greyAnthracite greyLight greyWhiteBronzeCustom colour (Please specify RAL code)
    Extras
    Consult the factory
    120-277V 50/60Hz
    Luminaire body options
    Double powder coating

    Technical details


    Certificates
    CE, UKCA
    Housing
    Corrosion resistant, extruded, marine grade aluminum housing
    Finishing
    Chromate conversion pretreatment followed by electrostatic powder coating
    Fasteners
    Stainless steel (AISI 304 / EN 1.4301 grade)
    Gasket
    EPDM gasket (Shore A 50)
    Lens / Reflector
    PMMA lens with high optical efficiency
    Glass / Diffusor
    Custom Design PMMA Diffusor
    Impact protection
    IK08
    Ingress protection
    IP65
    Input voltage
    220-240V 50/60Hz
    Insulation class
    Class I
    Weight
    10 kg
    LED module
    High power LEDs on metal-core PCB
    Driver
    Internal LED driver
    Driver surge protection
    1/1 kV
    Power factor
    > 0.90
    Through wiring
    Single cable entry
    Operating temperature
    -40...50°C
    Cable
    0.5 m of flexible cable

    Downloads

    Variants

    Light distribution
    Symmetric, Special effect: 4 lines
    [SYM-4L] Symmetric, Special effect: 4 lines - 360°
    Delivered lumens flux
    1473 lm
    1551 lm
    Rated input power
    20 W
    Colour temperature
    3000 K CRI 80
    4000 K CRI 70

    Variant code

    Light distribution

    Delivered lumens flux

    Rated input power

    Colour temperature

    Control

    Variant code: LB6011.513-EN-SYM-4L-700-740
    Light distribution: [SYM-4L] Symmetric, Special effect: 4 lines - 360°
    Delivered lumens flux: 1551 lm
    Rated input power: 20 W
    Colour temperature: 4000 K CRI 70
    Control: On/Off
    Light distribution
    [SYM-4L] 360°
    Delivered lumens flux
    1551 lm
    Rated input power
    20 W
    Colour temperature
    4000 K CRI 70
    Luminaire efficacy
    78 lm/W
    Lamp
    8 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B1-U0-G1
    Lifetime L90B50 (hour)
    >145,000
    Lifetime L80B50 (hour)
    >145,000
    Variant code: LB6011.513-EN-SYM-4L-700-830
    Light distribution: [SYM-4L] Symmetric, Special effect: 4 lines - 360°
    Delivered lumens flux: 1473 lm
    Rated input power: 20 W
    Colour temperature: 3000 K CRI 80
    Control: On/Off
    Light distribution
    [SYM-4L] 360°
    Delivered lumens flux
    1473 lm
    Rated input power
    20 W
    Colour temperature
    3000 K CRI 80
    Luminaire efficacy
    74 lm/W
    Lamp
    8 LED
    MacAdam Ellipse
    3 SDCM
    BUG rating
    B1-U0-G1
    Lifetime L90B50 (hour)
    >145,000
    Lifetime L80B50 (hour)
    >145,000

    Accessories (To be ordered separately)

    Accessories (To be ordered separately)

    All flux and power values derived following appropriate IES, CIE and applicable standards.
    Descriptions
    Variants

    Light distribution

    Drive current

    Symmetric, Special effect: 4 lines
    [SYM-4L]

    Symmetric, Special effect: 4 lines

    Drive current

    700 mA
    [700]

    700 mA

    Colour temperature

    3000 K CRI 80
    [830]

    3000 K CRI 80

    4000 K CRI 70
    [740]

    4000 K CRI 70

    Options

    Control

    Product colours

    On/Off
    [ONOFF]

    On/Off

    Product colours

    Black
    [HM1]

    Black

    Dark grey
    [HM2]

    Dark grey

    Anthracite grey
    [HM3]

    Anthracite grey

    Light grey
    [HM4]

    Light grey

    White
    [HM5]

    White

    Bronze
    [HM6]

    Bronze

    Custom colour (Please specify RAL code)
    [CC]

    Custom colour (Please specify RAL code)

    Extras

    Consult the factory

    Luminaire body options

    120-277V 50/60Hz
    [UNI]

    120-277V 50/60Hz

    Luminaire body options

    Double powder coating
    [DPC]

    Double powder coating
